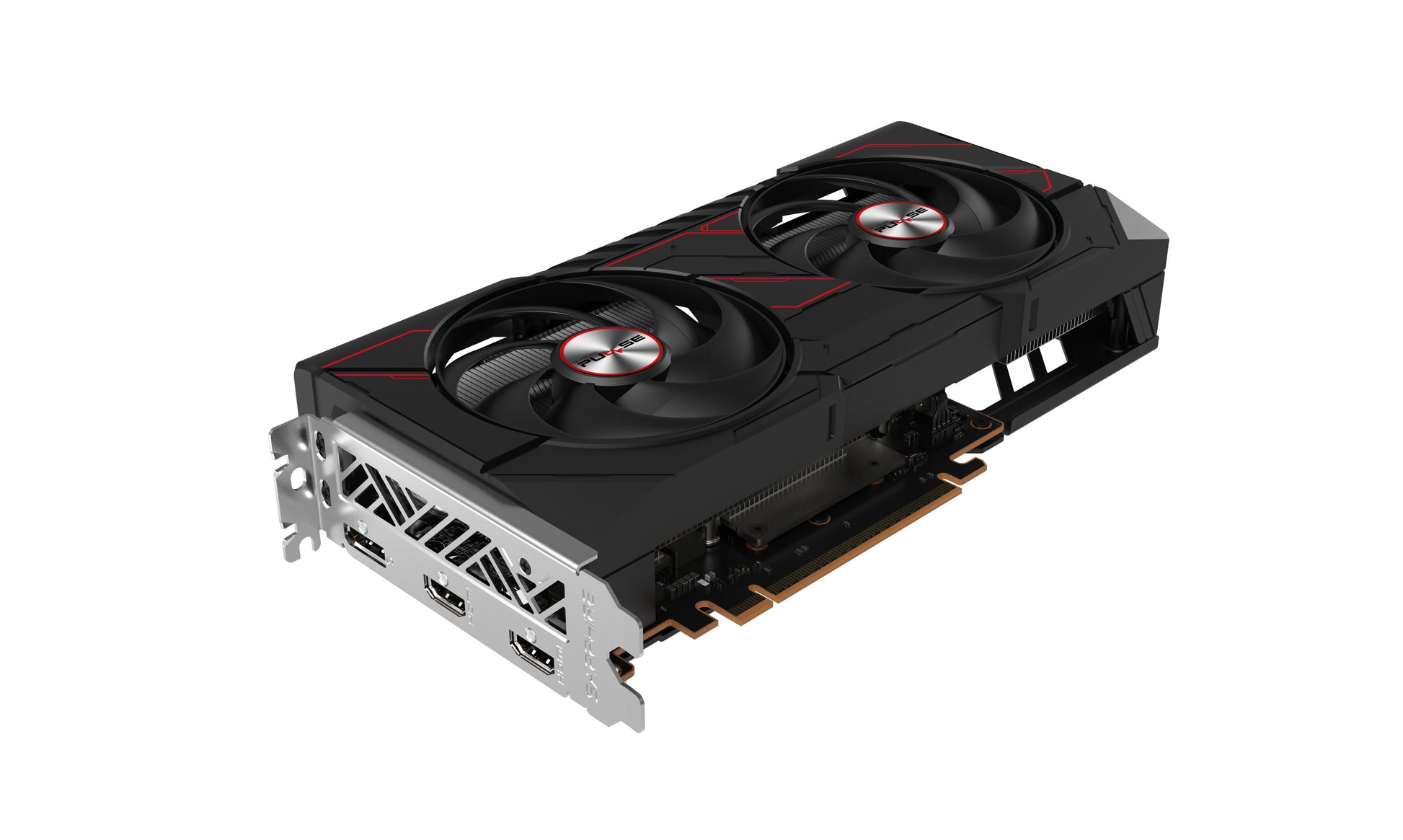

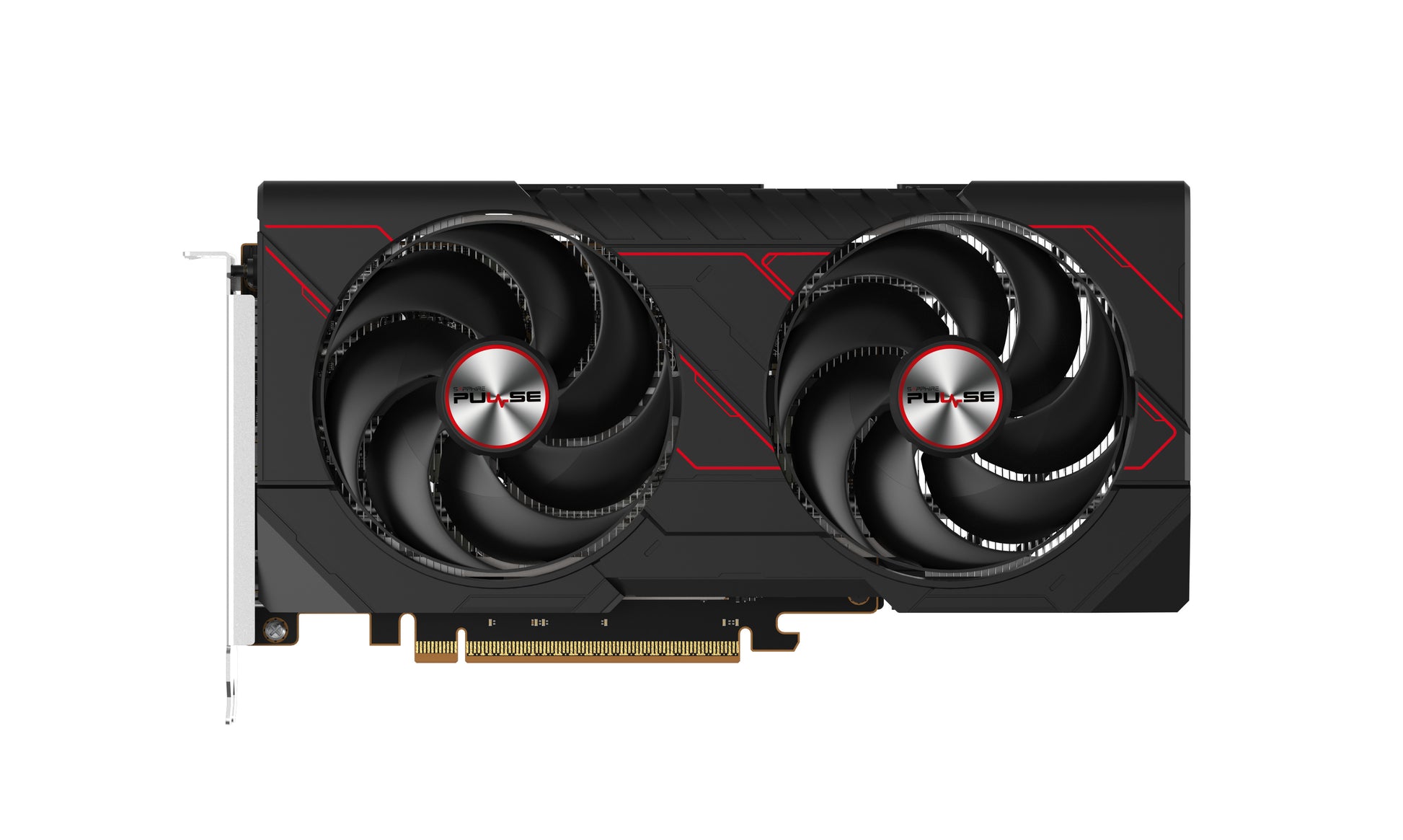

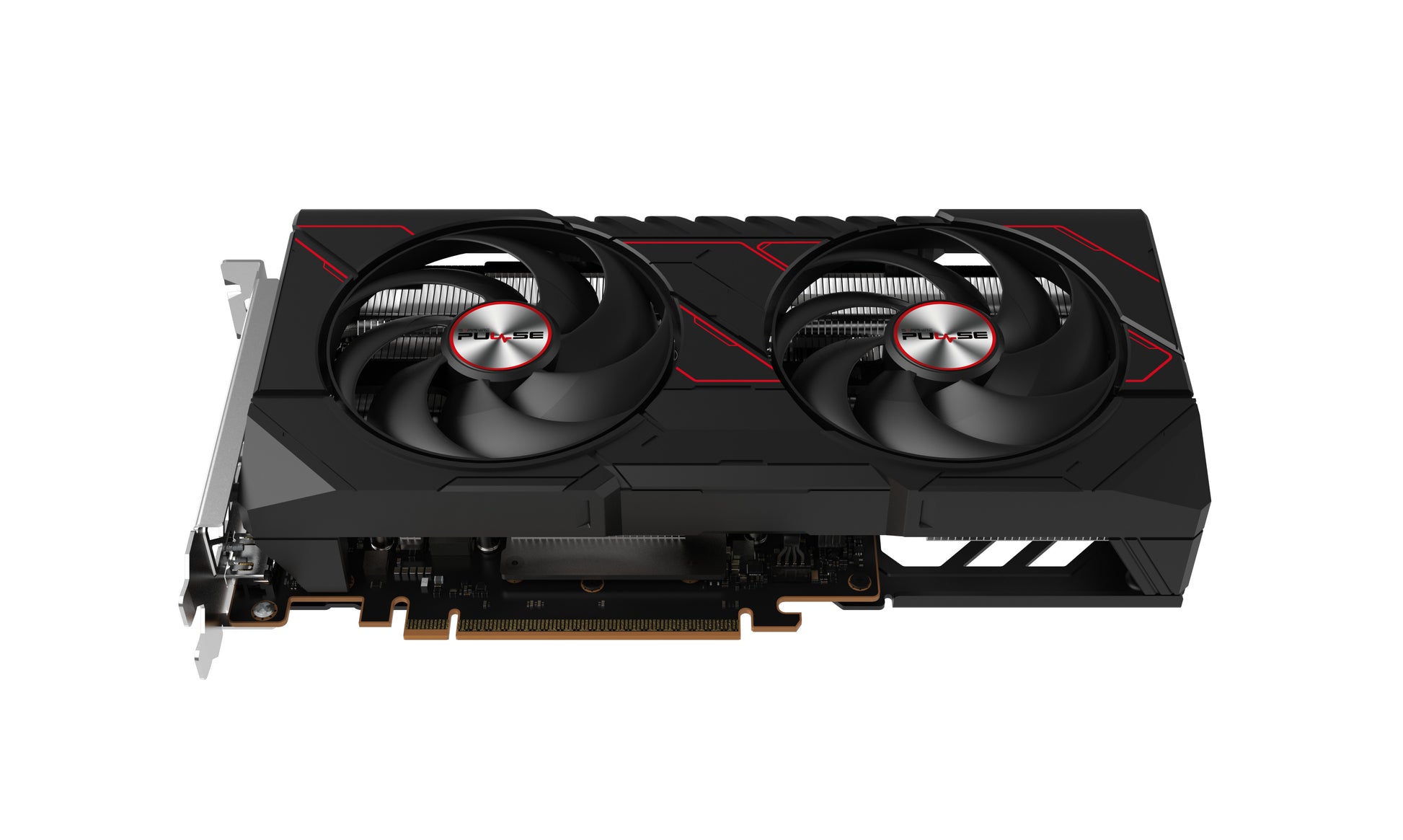

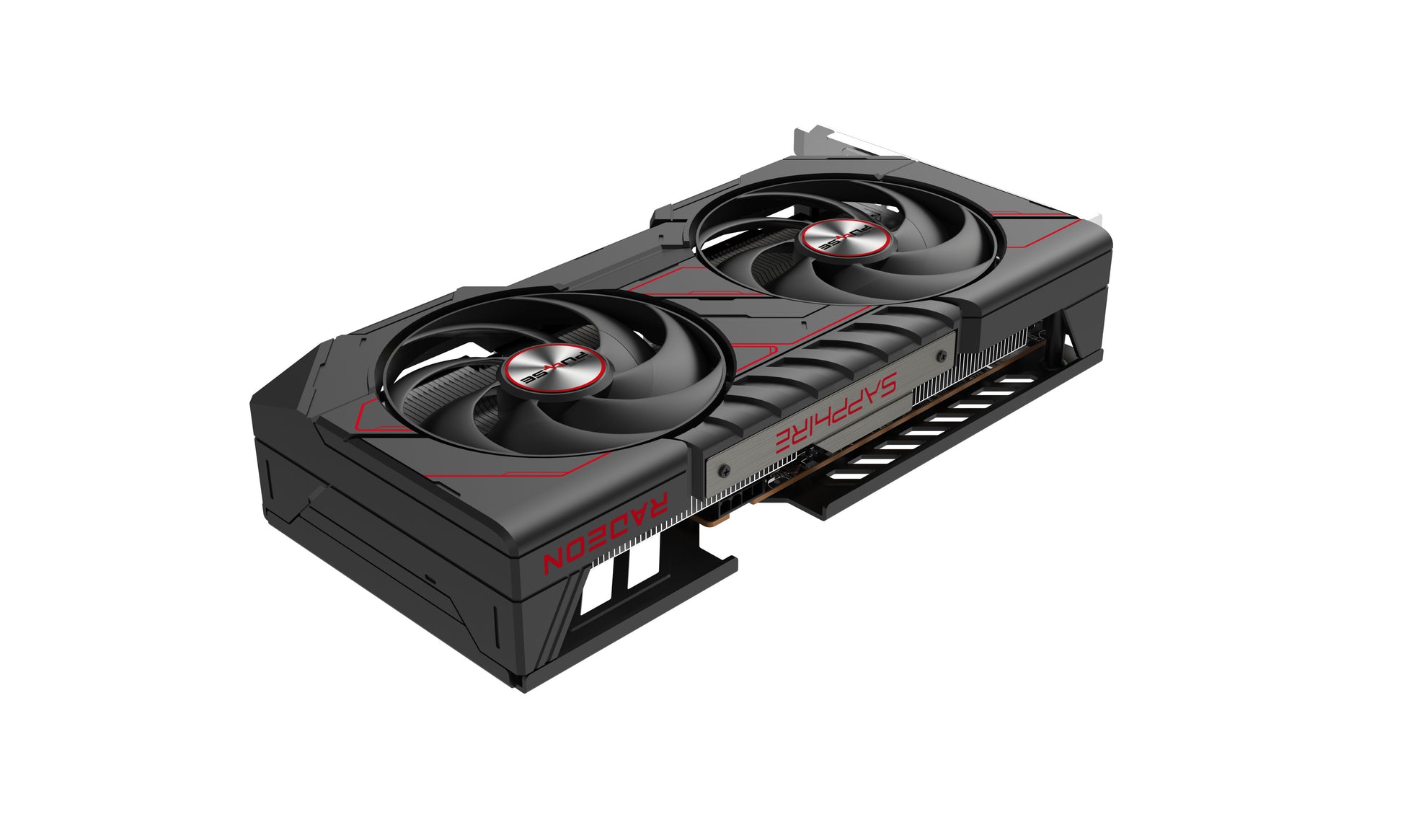

SAPPHIRE PULSE AMD RADEON RX 9060 XT GAMING OC 8GB

OVERVIEW

PULSE AMD Radeon™ RX 9060 XT 8GB GPU

GPU: AMD Radeon RX 9060 XT Graphics Card
Architecture: AMD RDNA 4
Boost Clock: Up to 3290 MHz
Game Clock: Up to 2700 MHz

Stream Processors: 2048
Compute Units: 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache: 32MB
Ray Accelerators: 32
AI Accelerators: 64
Memory Size/Bus: 8GB GDDR6 / 128-bit
Memory Clock: 20 Gbps Effective
Displays Supported: Maximum 3 Displays
Max Resolution: 7680×4320 (HDMI and DisplayPort)
Interface: PCI-Express 5.0 x16
Output Ports: 2x HDMI, 1x DisplayPort 2.1a

BIOS Support: UEFI
Game Index: 1440P

Sapphire Features:

• Honeywell PTM7950 Thermal Interface Material (TIM)

• AeroCurve Fan Blade

• Free Flow Airflow Design

• FrameDefense

• Integrated Cooling Module

• Dual-X Cooling Technology

• High TG Copper PCB

• Optimized Composite Heatpipes

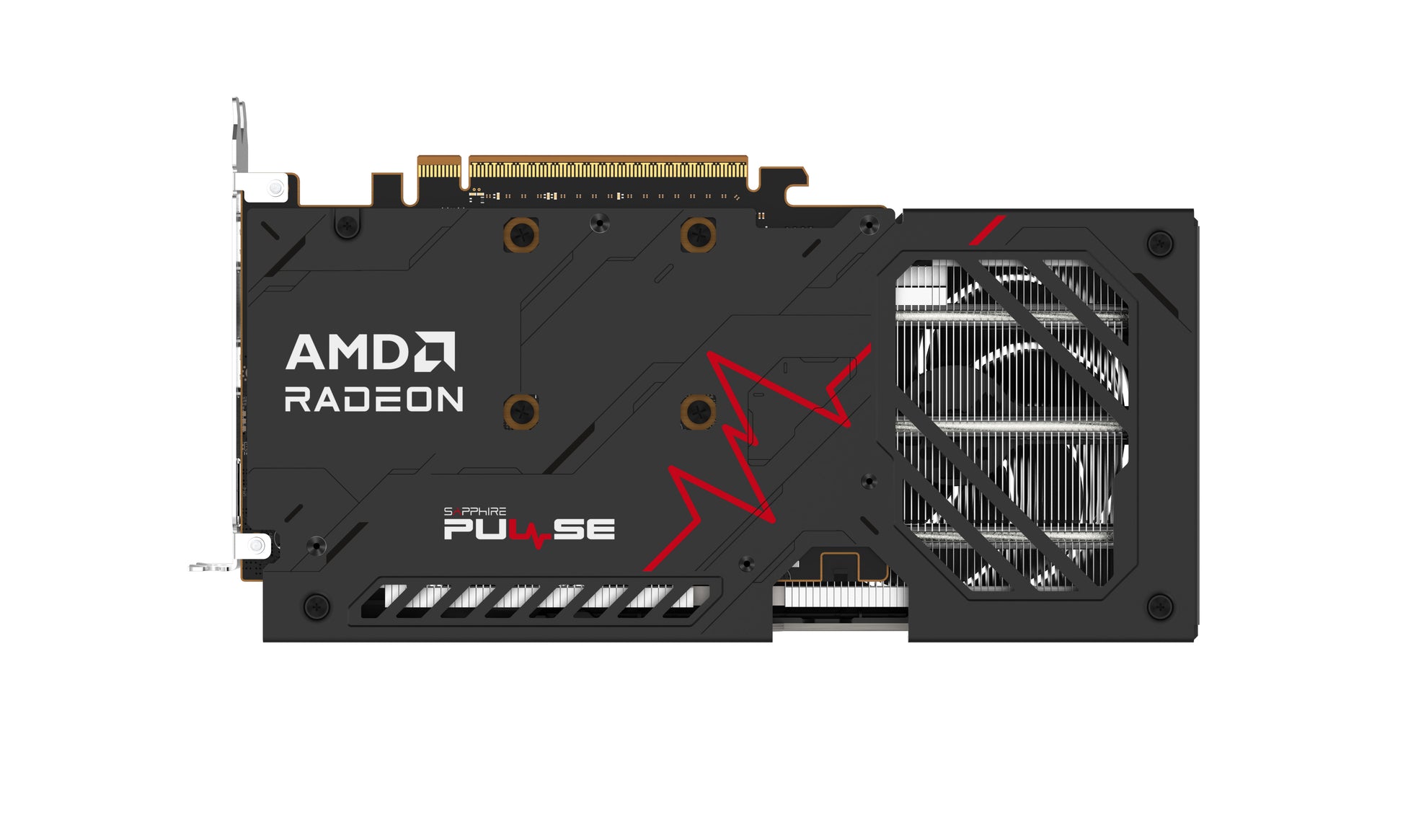

• Metal Backplate

• Sleeve Bearing Fans

• 9-Phase Digital Power Design

• Fuse Protection

• Intelligent Fan Control

• Precision Fan Control

• TriXX Supported

• TriXX Boost

AMD Features:

• AMD RDNA 4 Architecture

• 32 Compute Units with 3rd Gen RT & 2nd Gen AI Accelerators

• AMD HYPR-RX with AFMF 2

• AMD FidelityFX Super Resolution 4 with AI Upscaling

• DisplayPort 2.1a

• AMD Radiance Display Engine

• AMD Fluid Motion Frames 2

• AMD Radeon Anti-Lag 2

• AV1 Encode/Decode

• AMD FidelityFX Technologies

• Microsoft DirectX 12 Ultimate

• AMD Noise Suppression

• AMD Freesync Technology

• AMD Infinity Cache

• AMD Smart Technologies

• AMD Software: Adrenalin Edition

Cooler Type:

• Dual-X Cooling

• AeroCurve Fan Blade

• Free Flow Design

• Integrated Cooling Module

• High TG Copper PCB

• Optimized Composite Heatpipes

• Sleeve Bearing Fans

Form Factor: 2.3-slot, ATX
Dimensions: 244 x 124 x 46.1 mm
Power Consumption: 170W (Typical Board Power)

Operating System Support: Linux, Windows 10 & 11 (64-bit)
System Requirements:

• Minimum 450W Power Supply

• 1x 8-pin Power Connector

• PCIe x16 lane graphics slot

• Minimum 8GB system memory (16GB recommended)
