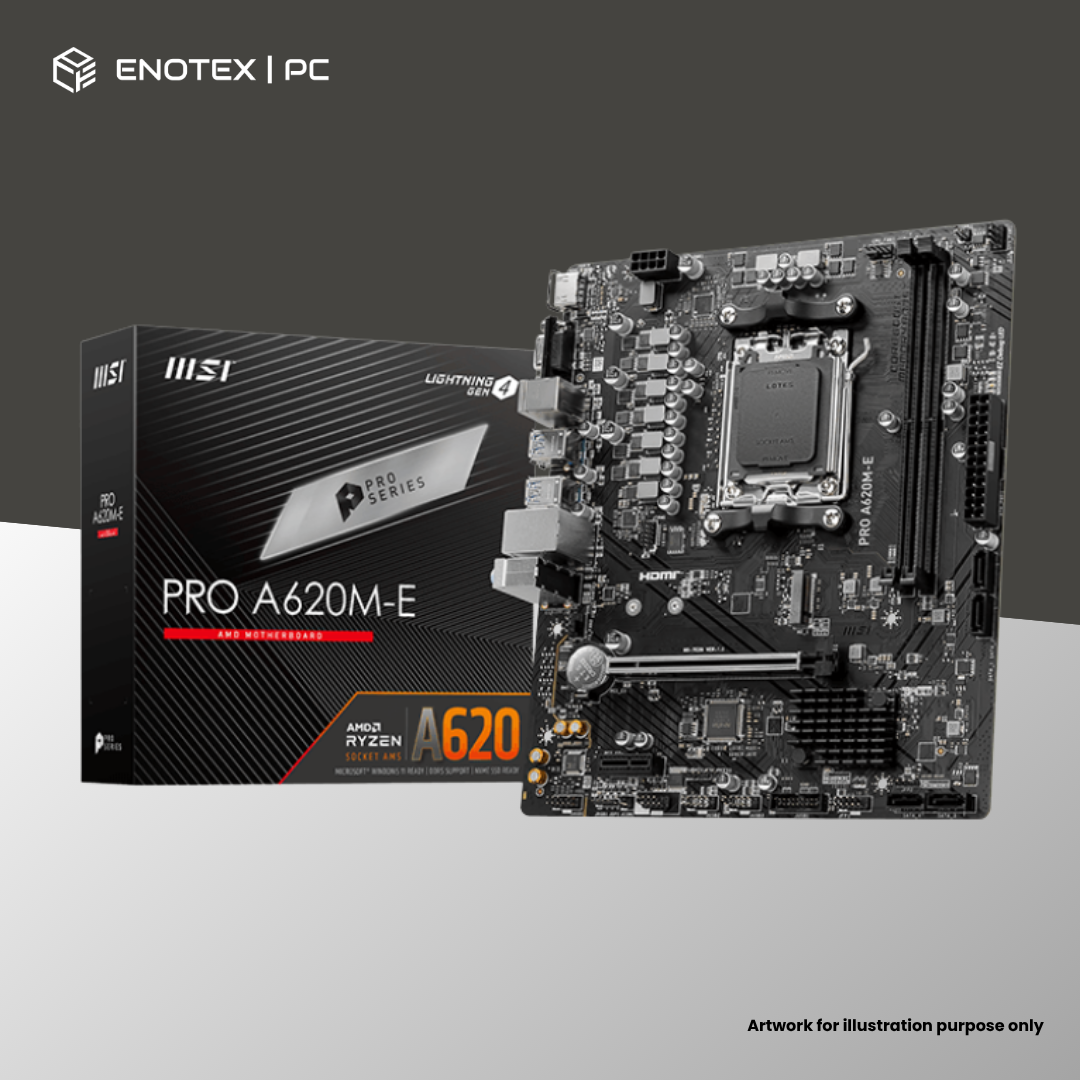

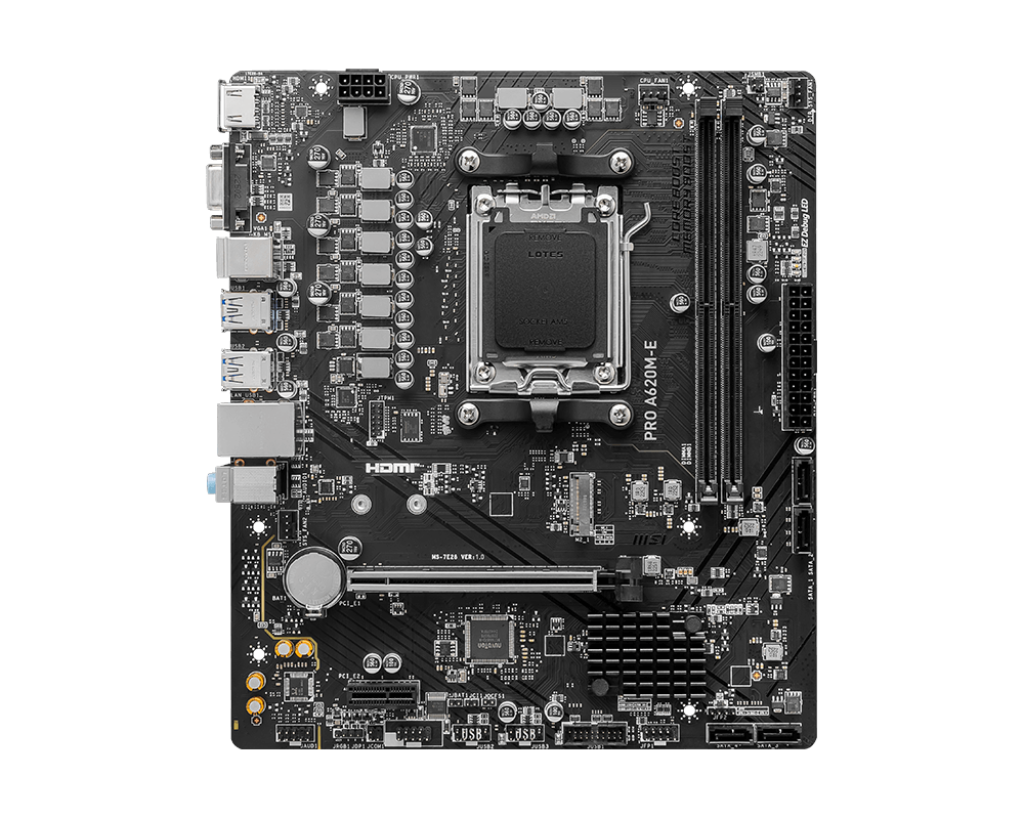

MSI PRO A620M-E

CPU
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Socket AM5

Memory
2x DDR5, up to 128GB
Supports DDR5 6800+(OC) to 4800 MHz (JEDEC)
Dual-channel support
Supports AMD EXPO, non-ECC, un-buffered

Onboard Graphics
1x HDMI (up to 4K @ 60Hz, HDMI 2.1)
1x VGA (up to 2048x1536 @ 50Hz)
Available only with CPUs that have integrated graphics

Slot
1x PCI-E x16 (PCIe 4.0 from CPU)
1x PCI-E x1 (PCIe 3.0 from Chipset)

Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio

Storage
1x M.2 PCIe 4.0 x4 (2280/2260, from CPU)
4x SATA 6Gb/s

RAID
Supports RAID 0, 1, and 10 (SATA only)

USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type-A (Rear)
2x USB 5Gbps Type-A (Front)

LAN
Realtek® RTL8111H Gigabit LAN

Internal I/O
1x 24-pin ATX Power
1x 8-pin CPU Power
1x CPU Fan, 2x System Fan
4x USB 2.0
2x USB 5Gbps
1x Front Audio, 1x COM, 1x TPM 2.0
1x RGB LED
2x Front Panel Headers
1x Chassis Intrusion

LED Feature
4x EZ Debug LED

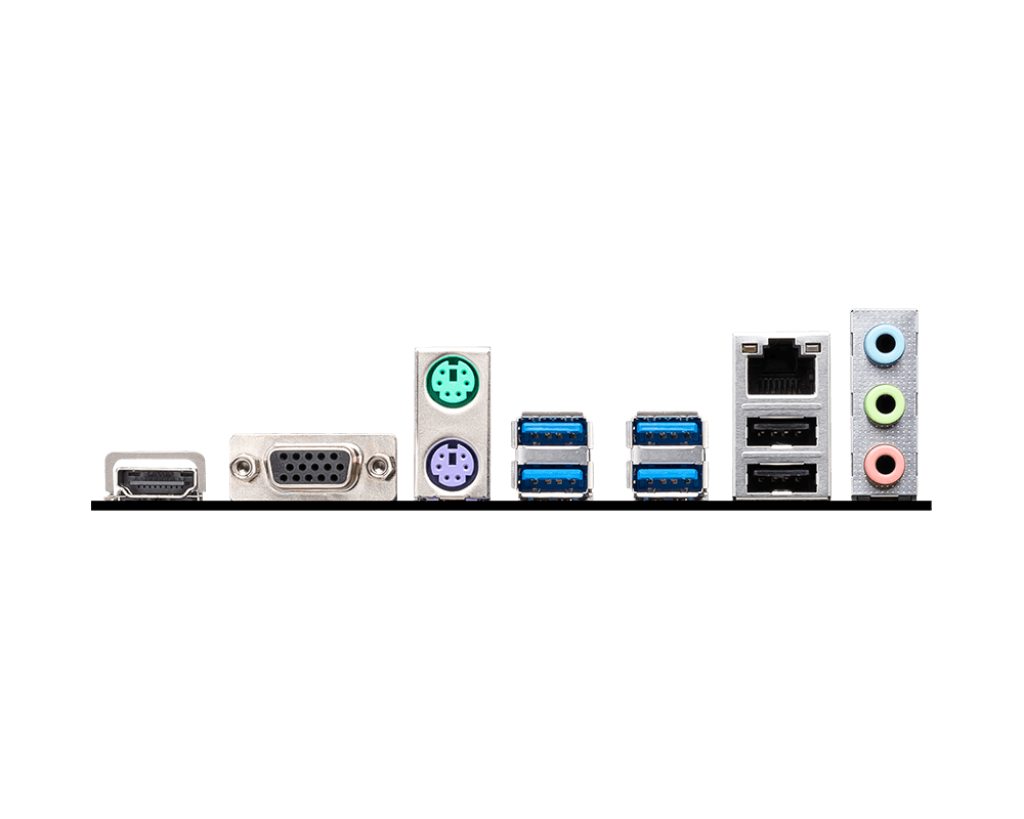

Back Panel Ports
1x HDMI
1x VGA
1x PS/2 Keyboard/Mouse
4x USB 5Gbps Type-A
2x USB 2.0
1x LAN Port
3x Audio Jacks

Operating System
Windows 11 64-bit
Windows 10 64-bit

Form Factor
mATX (211mm x 243.84mm)
