OVERVIEW

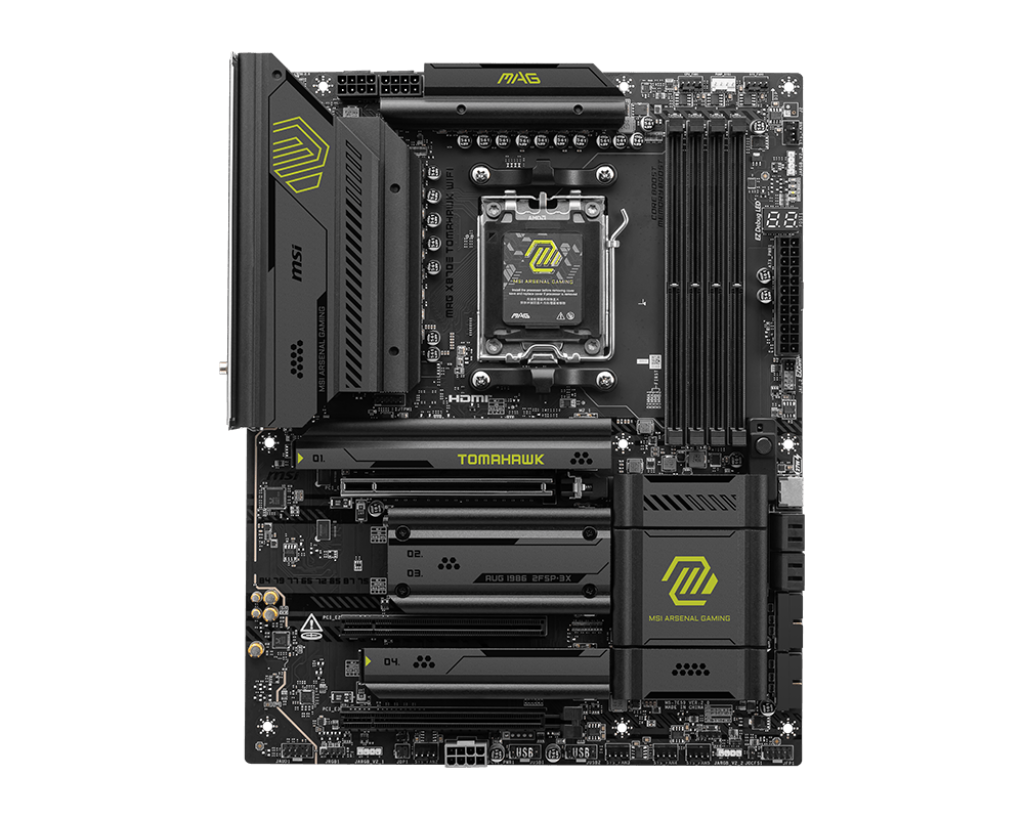

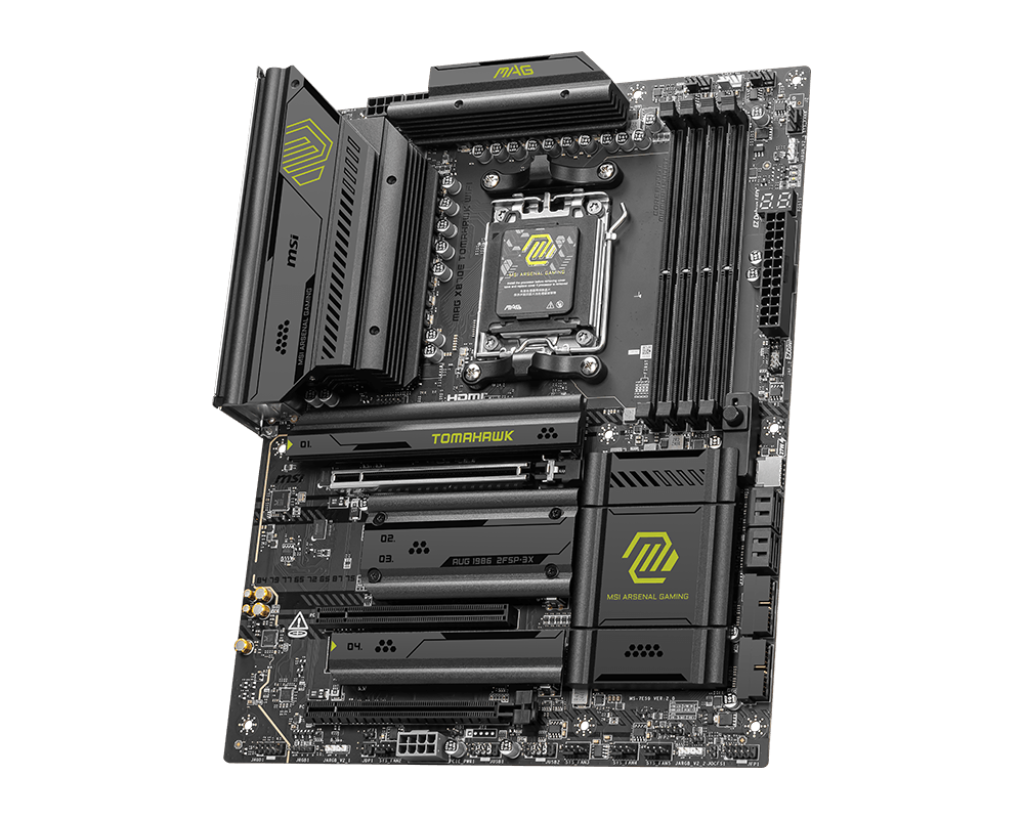

MAG X870E TOMAHAWK WIFI

CPU
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series
Socket AM5

Memory
4 x DDR5 UDIMM, up to 256GB
Supports DDR5 8400 - 5600 (OC) / 5600 - 4800 (JEDEC)
Supports AMD EXPO™, dual-channel, non-ECC
CUDIMM (clock driver bypass only)
Max speed (Ryzen 9000): up to 8400+ MT/s (1DPC 1R)

Graphics
1 x HDMI™ 2.1 (up to 8K 60Hz)
2 x Type-C DisplayPort (USB4®, up to 4K 60Hz)
Available only if CPU has integrated graphics

Slots
3 x PCIe x16
PCI_E1: PCIe 5.0 x16 (from CPU)
PCI_E2: PCIe 3.0 x1 (from Chipset)
PCI_E3: PCIe 4.0 x4 (from Chipset)

Audio
Realtek® ALC4080 Codec
7.1 USB High Performance Audio
Up to 32-bit/384kHz playback
S/PDIF supported

Storage
4 x M.2
M.2_1: PCIe 5.0 x4 (CPU, 22110/2280)
M.2_2: PCIe 5.0 x4 (CPU, 2280/2260)
M.2_3 & M.2_4: PCIe 4.0 x4 (Chipset, 2280/2260)
4 x SATA 6G

RAID
RAID 0/1/10 for SATA
RAID 0/1/5/10 for M.2 NVMe
RAID 5 only on Ryzen 9000, RAID 10 only on Ryzen 9000/7000

USB
Rear: 2 x USB 40Gbps Type-C, 1 x USB 10Gbps Type-C, 2 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0
Front: 1 x USB 20Gbps Type-C, 4 x USB 5Gbps Type-A, 4 x USB 2.0

LAN
Realtek® 8126 5G LAN

Wireless
Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), 2.4/5/6GHz up to 5.8Gbps
Bluetooth® 5.4

Internal I/O
1 x 24-pin ATX
2 x 8-pin CPU_PWR
1 x PCIe_PWR 8-pin
1 x CPU fan, 6 x system fan, 1 x pump fan
3 x ARGB Gen2, 1 x RGB
1 x TPM 2.0 header
1 x front audio, 2 x front panel
4 x USB 2.0, 4 x USB 5Gbps Type-A, 1 x USB 20Gbps Type-C

LED Features
4 x EZ Debug LED
1 x EZ Digit Debug LED

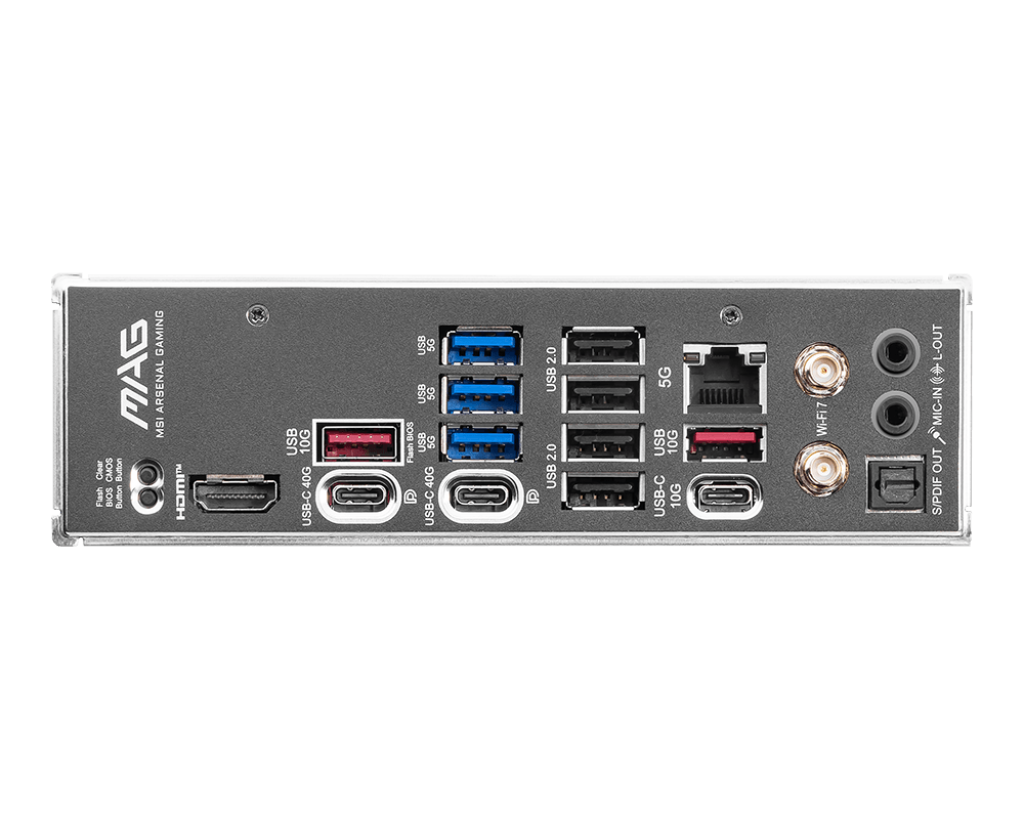

Back Panel Ports
Clear CMOS
Flash BIOS
HDMI™
2 x USB 40Gbps Type-C
2 x USB 10Gbps Type-A
1 x USB 10Gbps Type-C
3 x USB 5Gbps Type-A
4 x USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio jacks

Operating System
Windows® 11 64-bit
