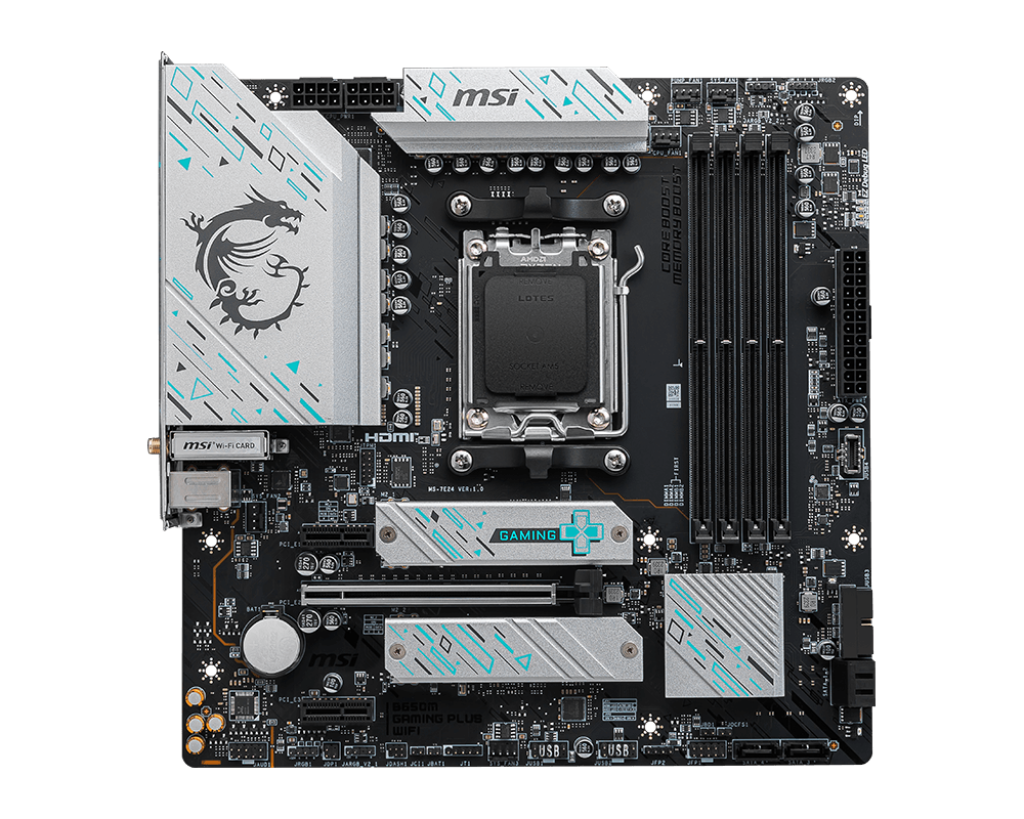

MSI B650M GAMING PLUS WIFI SOCKET AM5 MAINBOARD

OVERVIEW

Chipset
AMD B650

CPU Support
AMD Ryzen 9000 / 8000 / 7000 Series

Memory
DDR5 up to 7200+ (OC), Dual Channel, 256GB Max, EXPO Support

Graphics Output
HDMI 2.1 (4K 60Hz)
DisplayPort 1.4 (4K 60Hz)

Expansion Slots
1 x PCIe x16 (Gen4)
2 x PCIe x1

Audio
Realtek ALC897, 7.1 HD Audio

Storage
2 x M.2 PCIe 4.0
4 x SATA 6Gb/s
RAID 0 / 1 / 10 Support

USB Ports
USB 10Gbps Type-C (Front & Rear)
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0

LAN
2.5Gbps Realtek LAN

Wi-Fi & Bluetooth
Wi-Fi 6E
Bluetooth 5.3

Internal Connectors
CPU/Chassis Fan
ARGB & RGB Headers
TPM Header
Front Panel USB & Audio

LED Feature
4 x EZ Debug LEDs

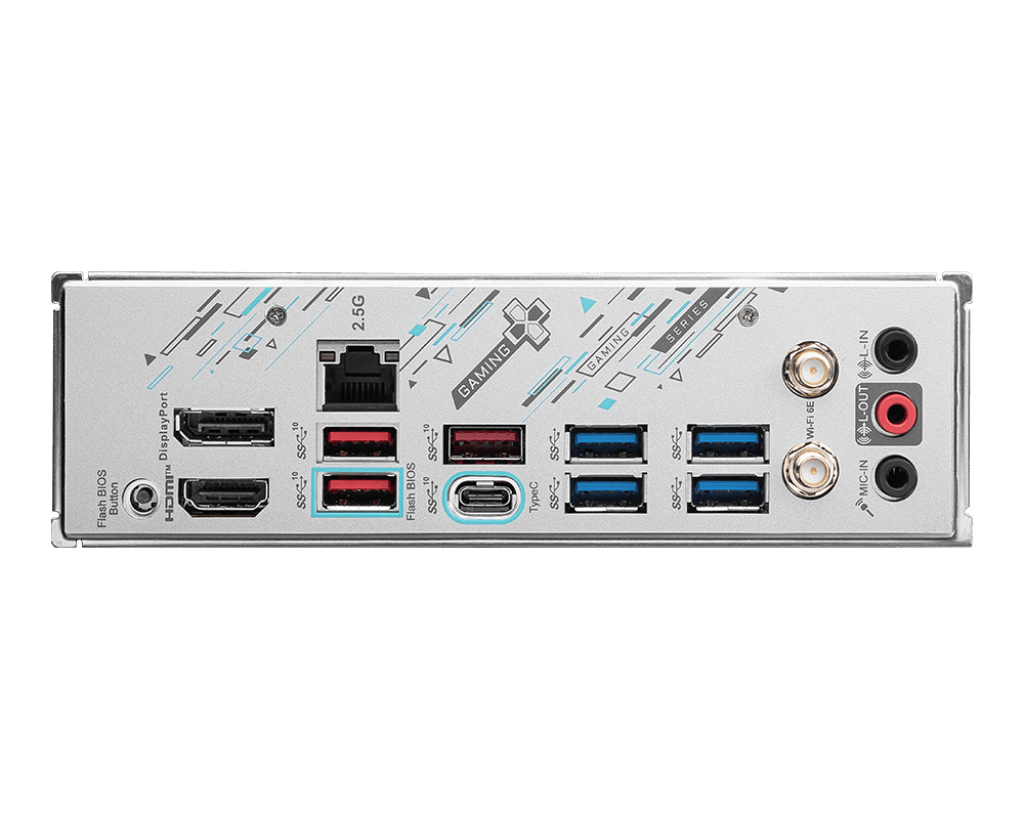

Back Panel I/O
DisplayPort
HDMI
USB 3.2 Gen2 (Type-A & C)
2.5G LAN
Wi-Fi Antenna Ports
Flash BIOS Button
Audio Jacks

OS Support
Windows 11 / 10 64-bit
