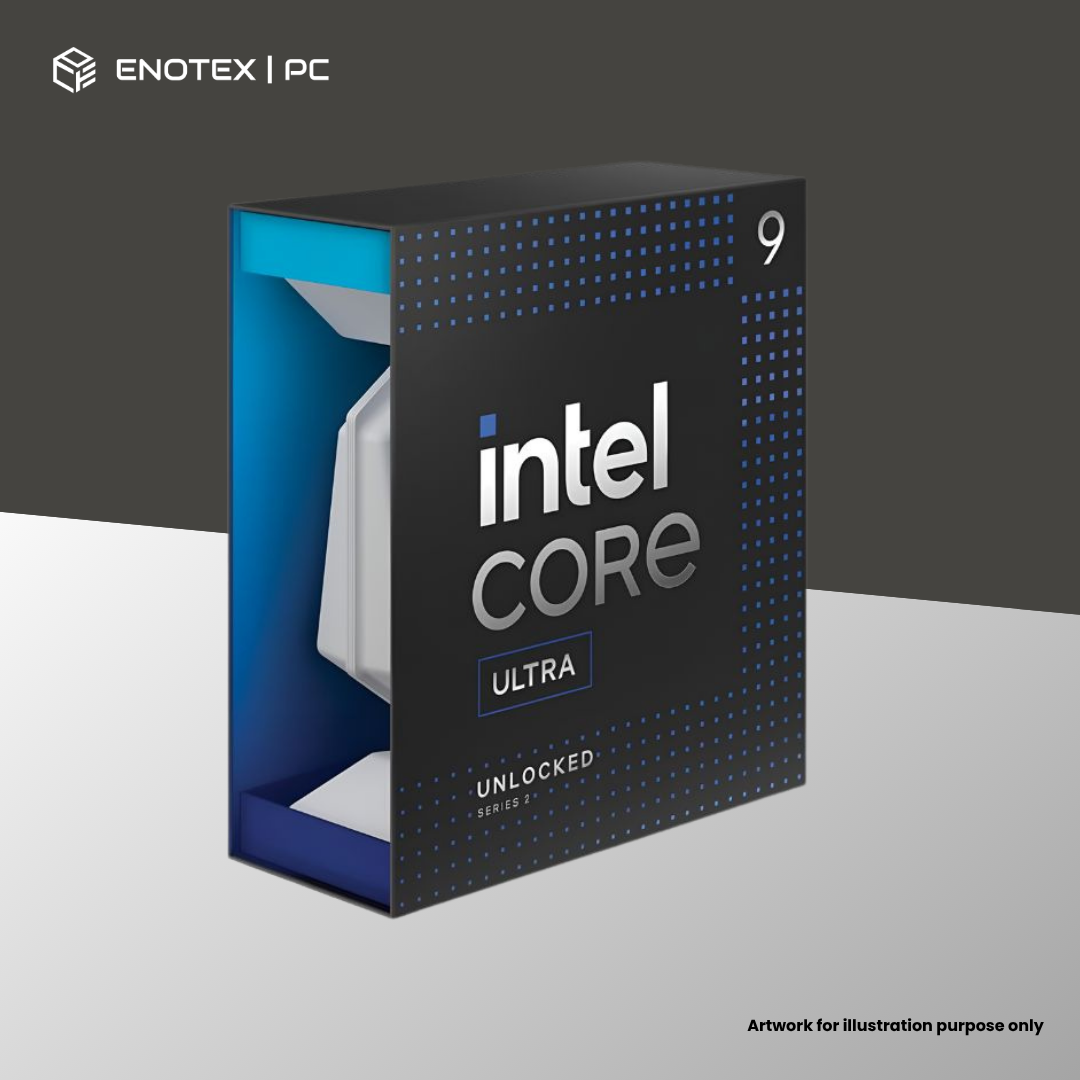

INTEL CORE ULTRA 9 285K PROCESSOR

CPU Specifications
Total Cores: 24
# of Performance-cores: 8
# of Efficient-cores: 16
Total Threads: 24
Max Turbo Frequency: 5.7 GHz
Intel® Thermal Velocity Boost Frequency: 5.7 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency: 5.6 GHz
Performance-core Max Turbo Frequency: 5.5 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core Base Frequency: 3.7 GHz
Efficient-core Base Frequency: 3.2 GHz
Cache: 36 MB Intel® Smart Cache
Total L2 Cache: 40 MB
Processor Base Power: 125 W
Maximum Turbo Power: 250 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography: TSMC N3B
Marketing Status: Launched
Launch Date: Q4'24
Embedded Options Available: No
Use Conditions: PC/Client/Tablet, Workstation
Datasheet: View now
Max Memory Size (dependent on memory type): 256 GB
Memory Types: Up to DDR5 6400 MT/s
Maximum Memory Speed: 6400 MHz
Max # of Memory Channels: 2
ECC Memory Supported: Yes
GPU Name: Intel® Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 2 GHz
GPU Peak TOPS (Int8): 8
Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Xe-cores: 4
Max Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS), 8K @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP): 8K @ 60Hz
Max Resolution (eDP - Integrated Flat Panel): 4K @ 60Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3
Intel® Quick Sync Video: Yes
# of Displays Supported: 4
Device ID: 0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
NPU Name: Intel® AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel® Thunderbolt™ 4: Yes
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
Max # of PCI Express Lanes: 24
Sockets Supported: FCLGA1851
Thermal Solution Specification:
