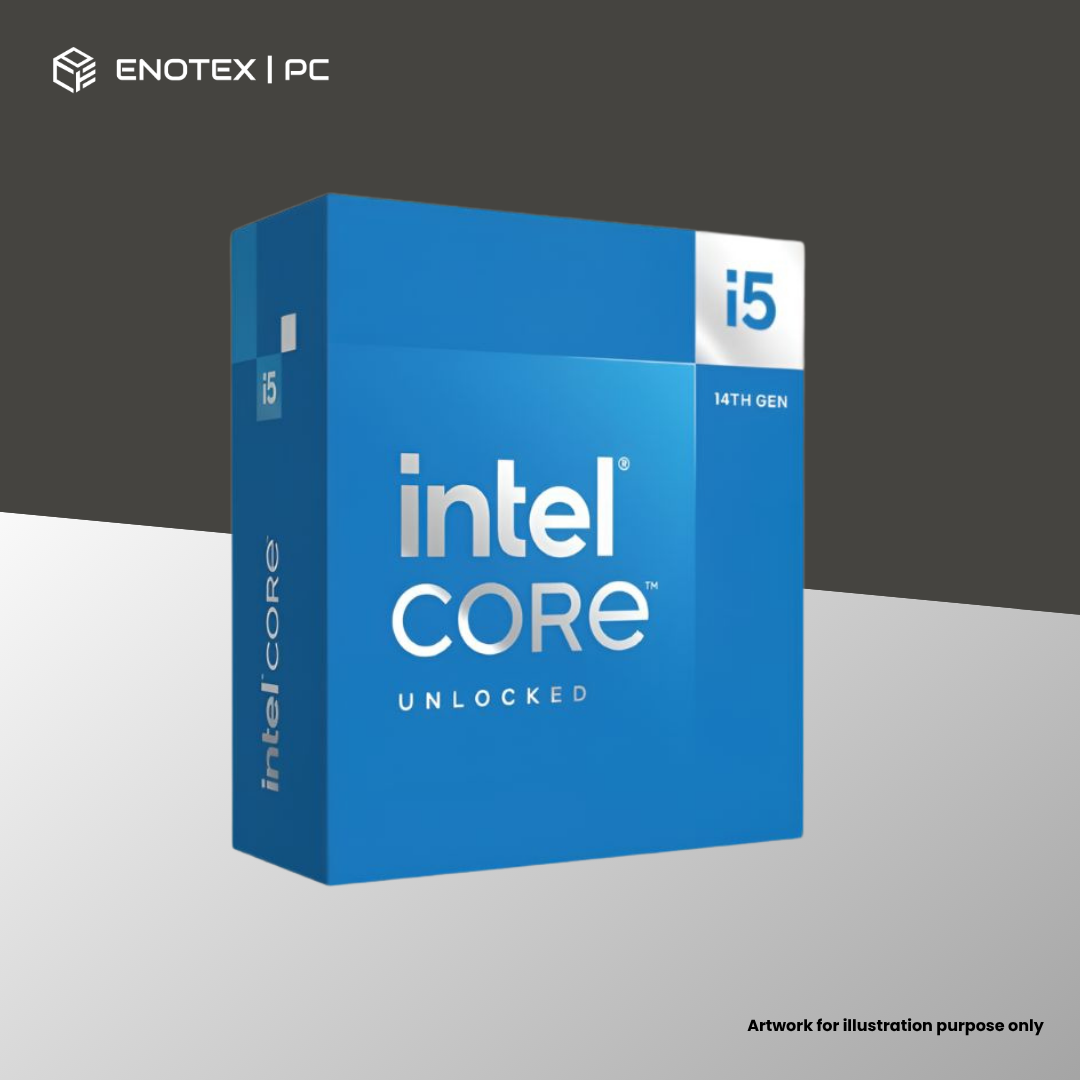

INTEL CORE I5 14600K PROCESSOR

CPU Specifications
Total Cores: 14
# of Performance-cores: 6
# of Efficient-cores: 8
Total Threads: 20
Max Turbo Frequency: 5.3 GHz
Performance-core Max Turbo Frequency: 5.3 GHz
Efficient-core Max Turbo Frequency: 4 GHz
Performance-core Base Frequency: 3.5 GHz
Efficient-core Base Frequency: 2.6 GHz
Cache: 24 MB Intel® Smart Cache
Total L2 Cache: 20 MB
Processor Base Power: 125 W
Maximum Turbo Power: 181 W

Supplemental Information
Marketing Status: Launched
Launch Date: Q4'23
Embedded Options Available: No
Use Conditions: PC/Client/Tablet, Workstation
Datasheet: View now

Memory Specifications
Max Memory Size (dependent on memory type): 192 GB
Memory Types: Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels: 2
Max Memory Bandwidth: 89.6 GB/s
ECC Memory Supported: Yes

GPU Specifications
GPU Name: Intel® UHD Graphics 770
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.55 GHz
Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units: 32
Max Resolution (HDMI): 4096 x 2160 @ 60Hz
Max Resolution (DP): 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3.0
Multi-Format Codec Engines: 2
Intel® Quick Sync Video: Yes
Intel® Clear Video HD Technology: Yes
# of Displays Supported: 4
Device ID: 0xA780

Expansion Options
Direct Media Interface (DMI) Revision: 4.0
Max # of DMI Lanes: 8

Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes: 20

Package Specifications
Sockets Supported: FCLGA1700
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2020A
TJUNCTION: 100°C
Package Size: 45.0 mm x 37.5 mm
Max Operating Temperature: 100 °C

Advanced Technologies
Intel® Gaussian & Neural Accelerator: 3.0
Intel® Thread Director: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Speed Shift Technology: Yes
