OVERVIEW

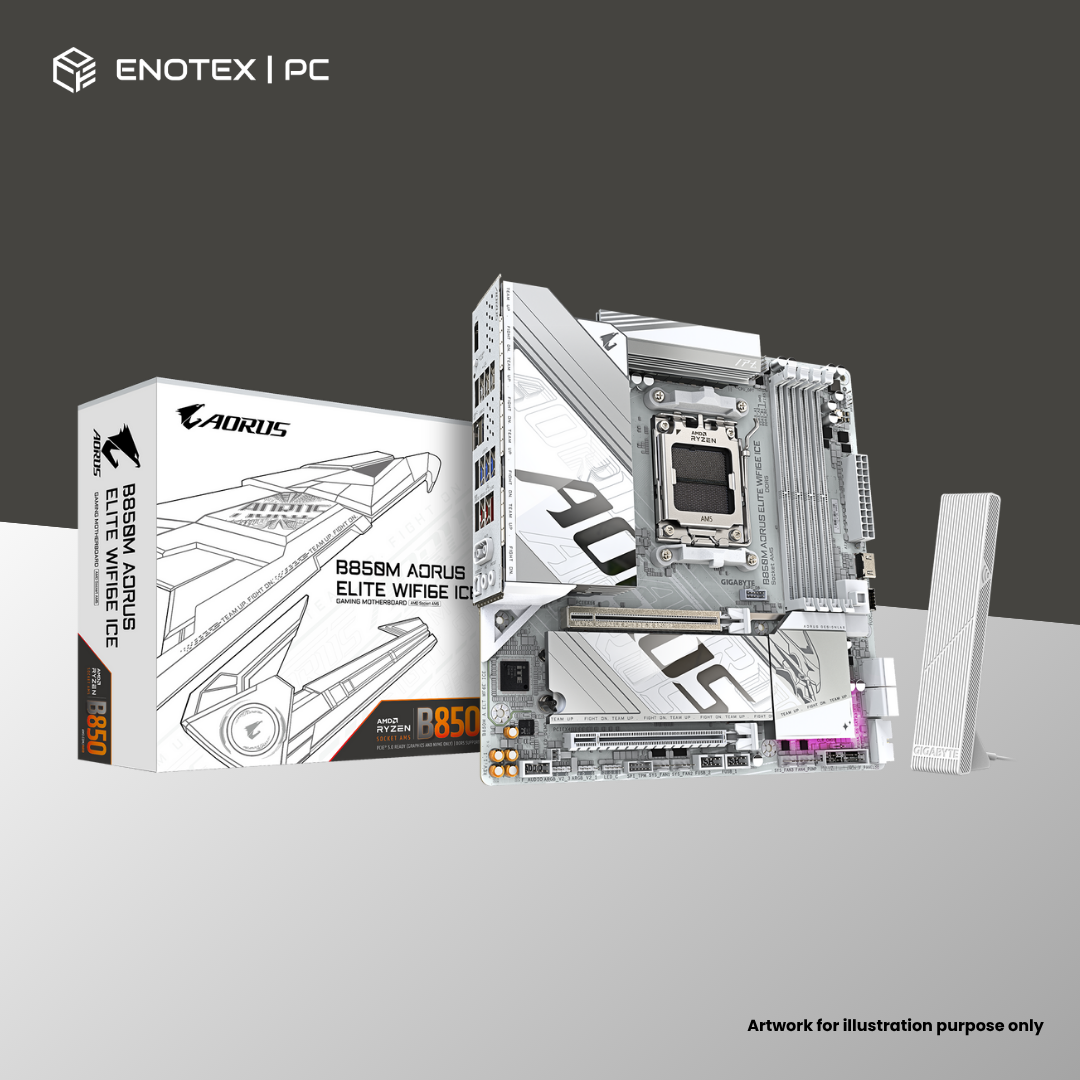

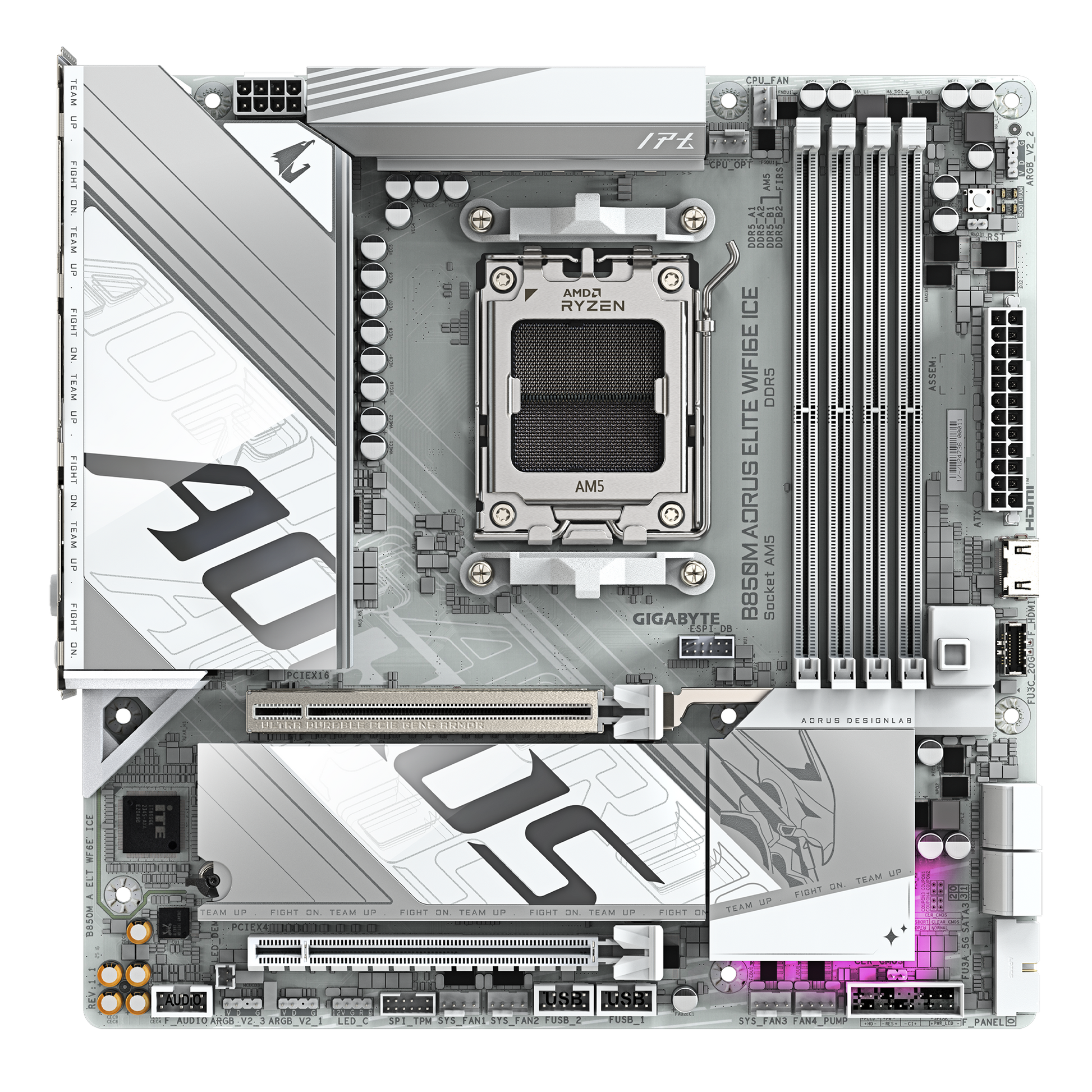

B850M AORUS ELITE WIFI6E ICE

CPU
AMD Socket AM5, supports Ryzen™ 9000 / 8000 / 7000 Series

Chipset
AMD B850

Memory
DDR5 8200(O.C) to 4400 MT/s
4 x DDR5 DIMM, up to 256 GB
Dual channel
Supports AMD EXPO™ & XMP

Graphics
Integrated AMD Radeon™
1 x DisplayPort 3840x2160@144Hz
1 x HDMI 1920x1080@30Hz

Audio
Realtek® Audio CODEC (rev. 1.0 or ALC1220 rev. 1.1)
7.1-channel HD Audio
Support for S/PDIF Out

LAN
Realtek® 2.5GbE

Wi-Fi & Bluetooth
Realtek® Wi-Fi 6E RTL8852CE
Bluetooth 5.3
2.4/5/6 GHz support

Expansion Slots
1 x PCIe x16 (Ryzen 9000/7000: PCIe 5.0 x16)
1 x PCIe x16 (x4, PCIe 3.0 via chipset)

Storage
2 x M.2 (PCIe 5.0/4.0 support based on CPU)
4 x SATA 6Gb/s
RAID 0/1/5/10 for NVMe (RAID 5 only on Ryzen 9000)
RAID 0/1/10 for SATA

USB
Rear:
1 x USB Type-C® (USB 3.2 Gen 2)
2 x USB 3.2 Gen 2 Type-A
4 x USB 2.0
4 x USB 3.2 Gen 1
Internal:
1 x USB Type-C® (USB 3.2 Gen 2x2)
3 x USB 3.2 Gen 1
4 x USB 2.0

Internal I/O
1 x 24-pin ATX, 1 x 8-pin 12V
4 x fan headers (CPU/system/pump)
3 x ARGB Gen2, 1 x RGB header
2 x M.2, 4 x SATA
1 x USB Type-C header (Gen 2x2)
2 x USB 2.0 headers
1 x USB 3.2 Gen 1 header
1 x TPM header
1 x HDMI
Reset, Clear CMOS jumpers

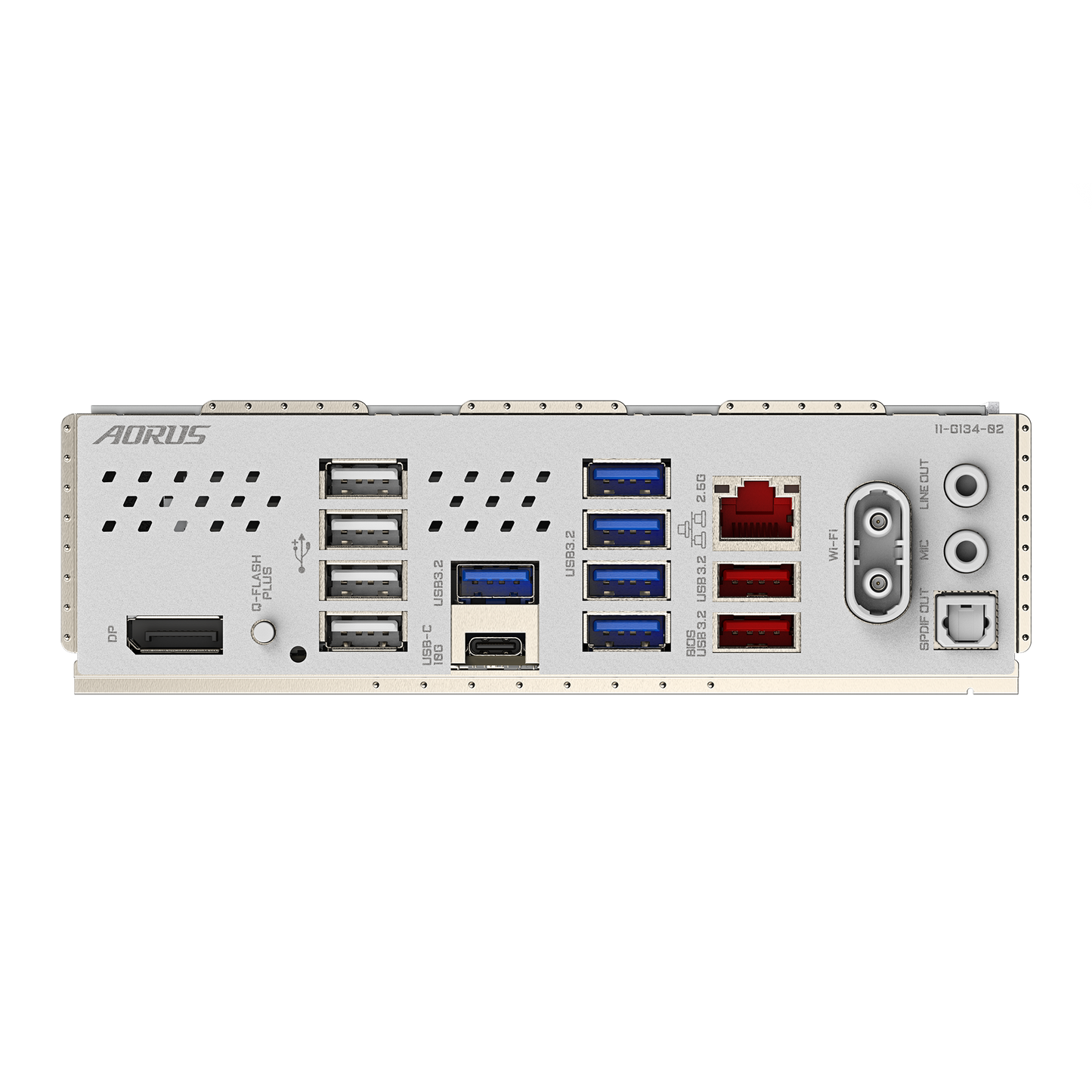

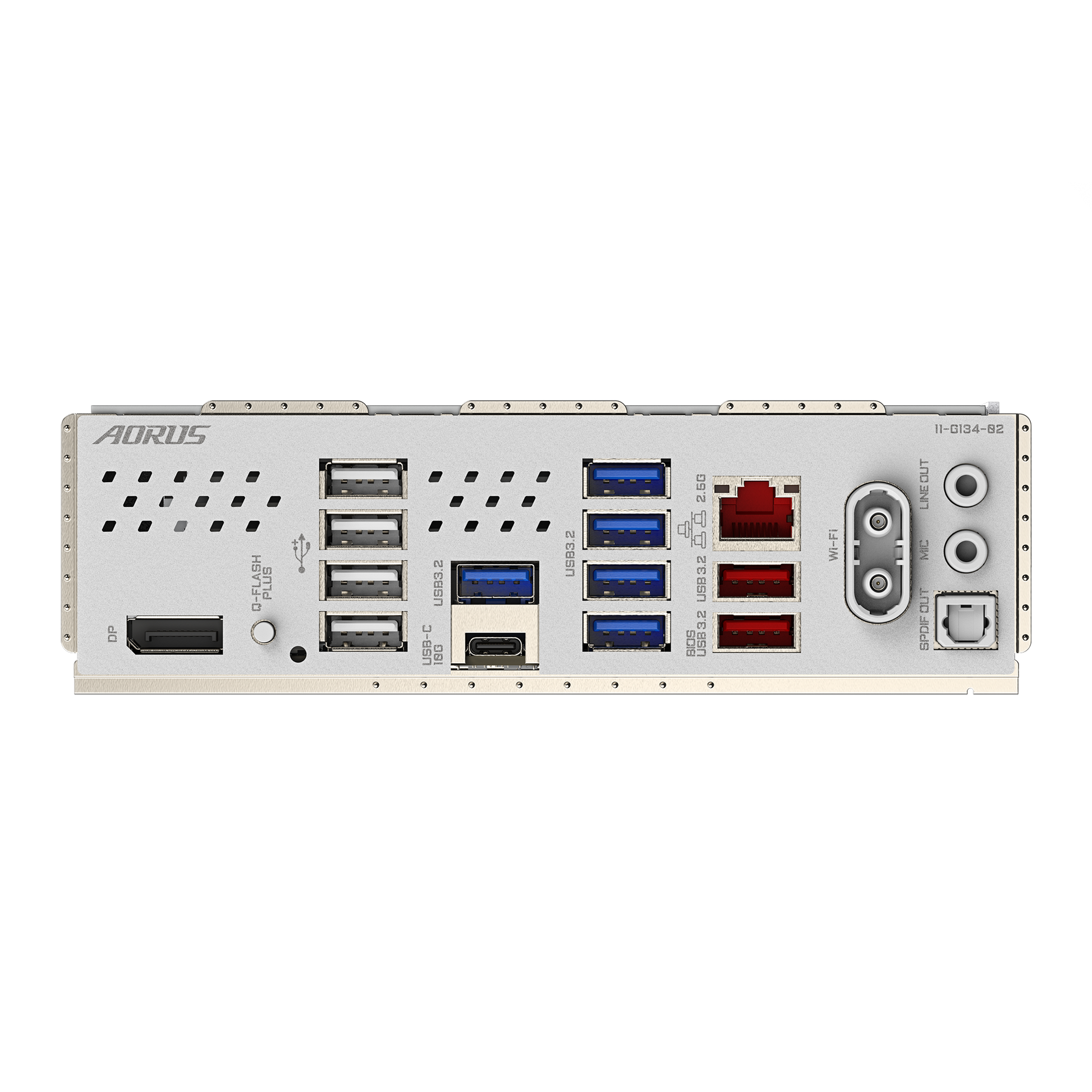

Back Panel
1 x DisplayPort
2 x USB 3.2 Gen 2 Type-A
1 x USB Type-C (Gen 2)
5 x USB 3.2 Gen 1
4 x USB 2.0
1 x RJ-45
2 x Wi-Fi antenna
2 x audio jacks
1 x Optical S/PDIF Out
1 x Q-Flash Plus button

I/O Controller
iTE® I/O Controller

Monitoring
Voltage, temperature, fan & water flow detection
Fan fail warning & speed control

BIOS
256 Mbit AMI UEFI BIOS

Features
GIGABYTE Control Center
Q-Flash, Q-Flash Plus
Smart Backup

Software
Norton Internet Security (OEM)
LAN bandwidth management

OS Support
Windows 11 64-bit
Windows 10 64-bit

Form Factor
Micro ATX, 24.4cm x 24.4cm
