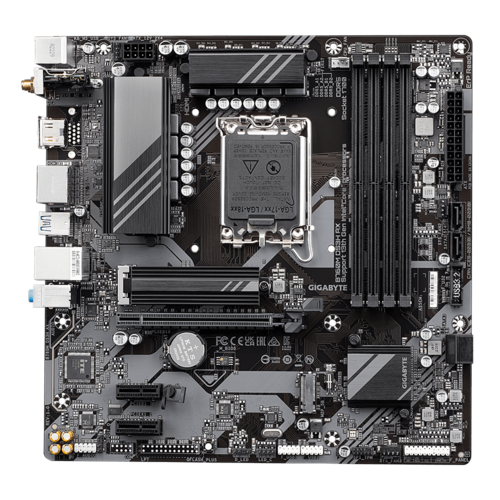

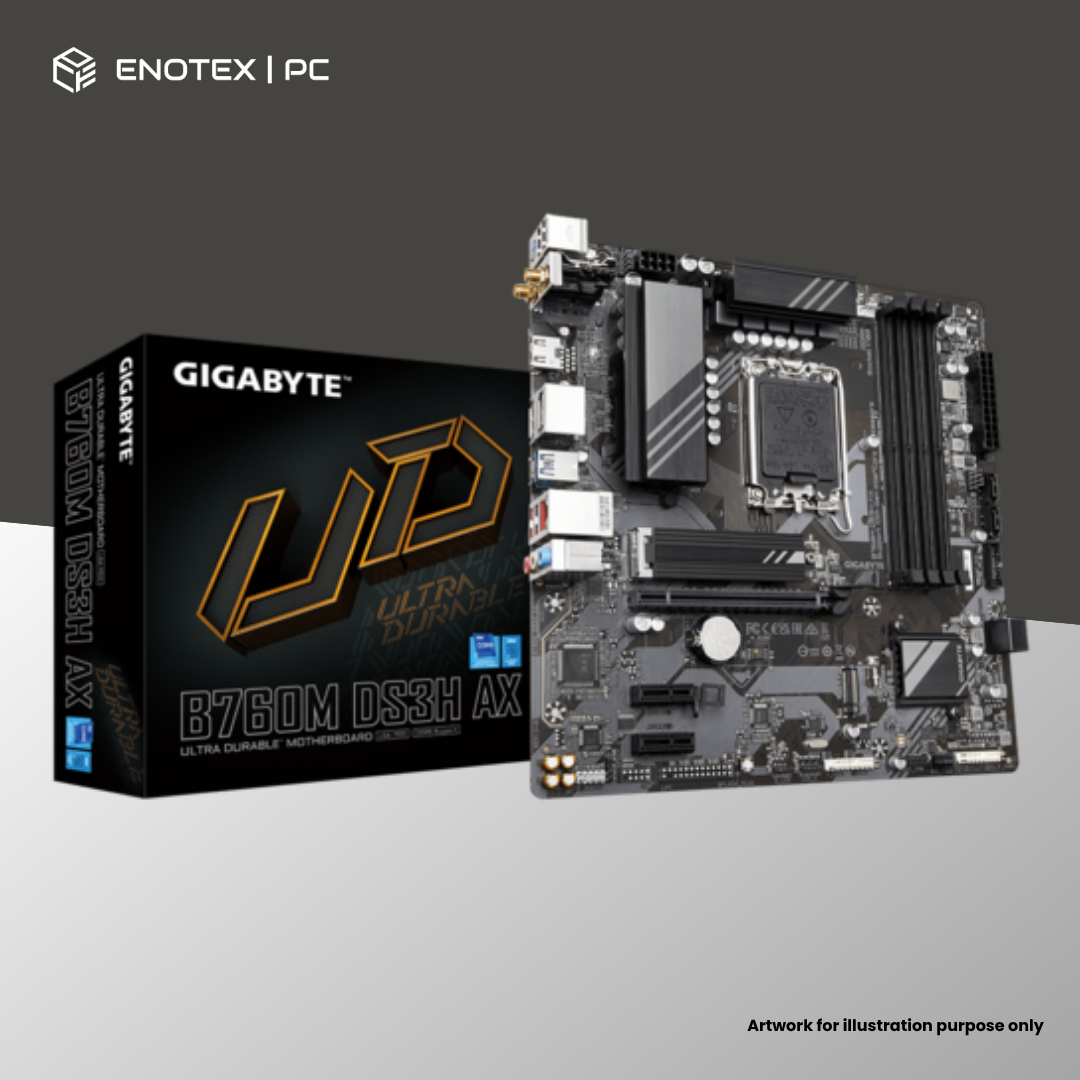

B760M DS3H AX (rev. 1.x)

CPU
LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
L3 cache varies by CPU

Chipset
Intel B760 Express Chipset

Memory
Supports DDR5 7600(O.C.) to 4000 MT/s
4 x DDR5 DIMM slots, up to 256 GB
Dual channel, ECC & non-ECC Un-buffered DIMMs supported
Supports Intel XMP

Onboard Graphics
1 x HDMI (4096x2160@60Hz)
2 x DisplayPort (4096x2304@60Hz)
Triple-display support
Graphics output varies by CPU

Audio
Realtek Audio CODEC
7.1-channel HD Audio
S/PDIF Out supported

LAN
Realtek 2.5GbE LAN

Wireless Communication (varies by PCB revision)
Wi-Fi 6E with Bluetooth 5.2/5.3
Up to 2.4 Gbps data rate
Supported chips: AMD RZ608, Intel AX210/AX211, Realtek RTL8852CE

Expansion Slots
1 x PCIe 4.0 x16 (CPU)
2 x PCIe 3.0 x1 (Chipset)

Storage
2 x M.2 PCIe 4.0 x4/x2 (CPU + Chipset)
4 x SATA 6Gb/s
RAID 0, 1, 5, 10 supported

USB Ports
Rear: 1 x USB-C (USB 3.2 Gen 2), 3 x USB 3.2 Gen 1, 2 x USB 2.0
Internal: 2 x USB 3.2 Gen 1 (via header), 4 x USB 2.0 (via headers)

Internal Connectors
1 x 24-pin ATX, 1 x 8-pin ATX
1 x CPU fan, 3 x system fan
2 x M.2, 4 x SATA
ARGB & RGB LED headers
Front panel, front audio, TPM header, USB headers
Q-Flash Plus button, reset jumper, Clear CMOS jumper

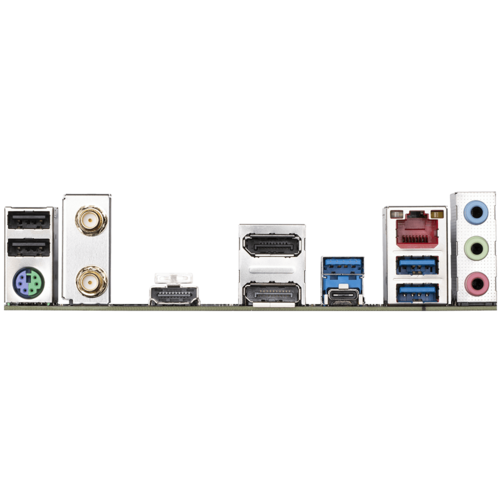

Back Panel
2 x USB 2.0, 3 x USB 3.2 Gen 1, 1 x USB-C Gen 2
HDMI, 2 x DisplayPort
PS/2 combo port
2T2R antenna connectors
RJ-45 LAN
3 x audio jacks

BIOS
128 Mbit flash
UEFI BIOS
Q-Flash and Q-Flash Plus support

Form Factor
Micro ATX, 24.4 cm x 24.4 cm

Operating System Support
Windows 11 64-bit
Windows 10 64-bit
