OVERVIEW

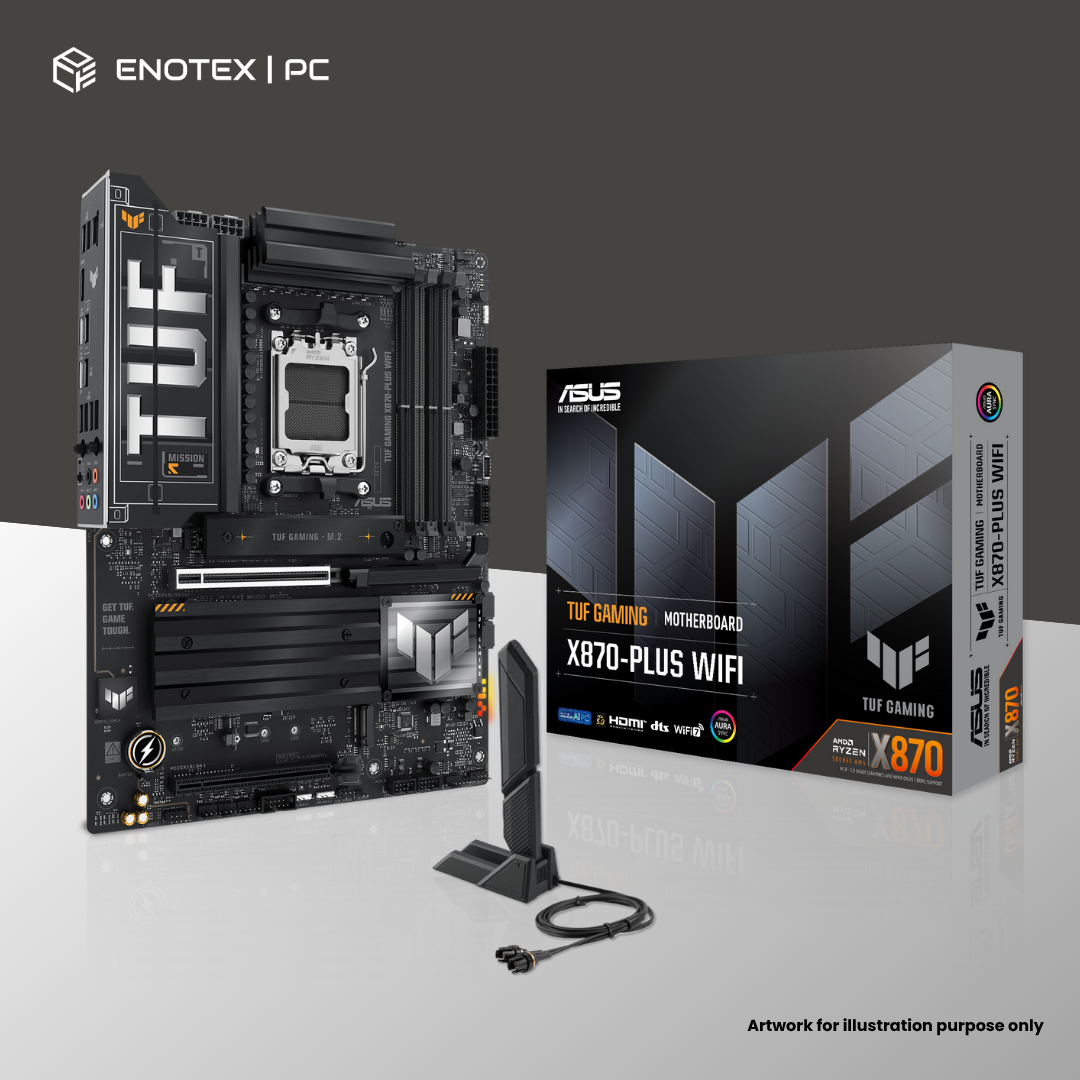

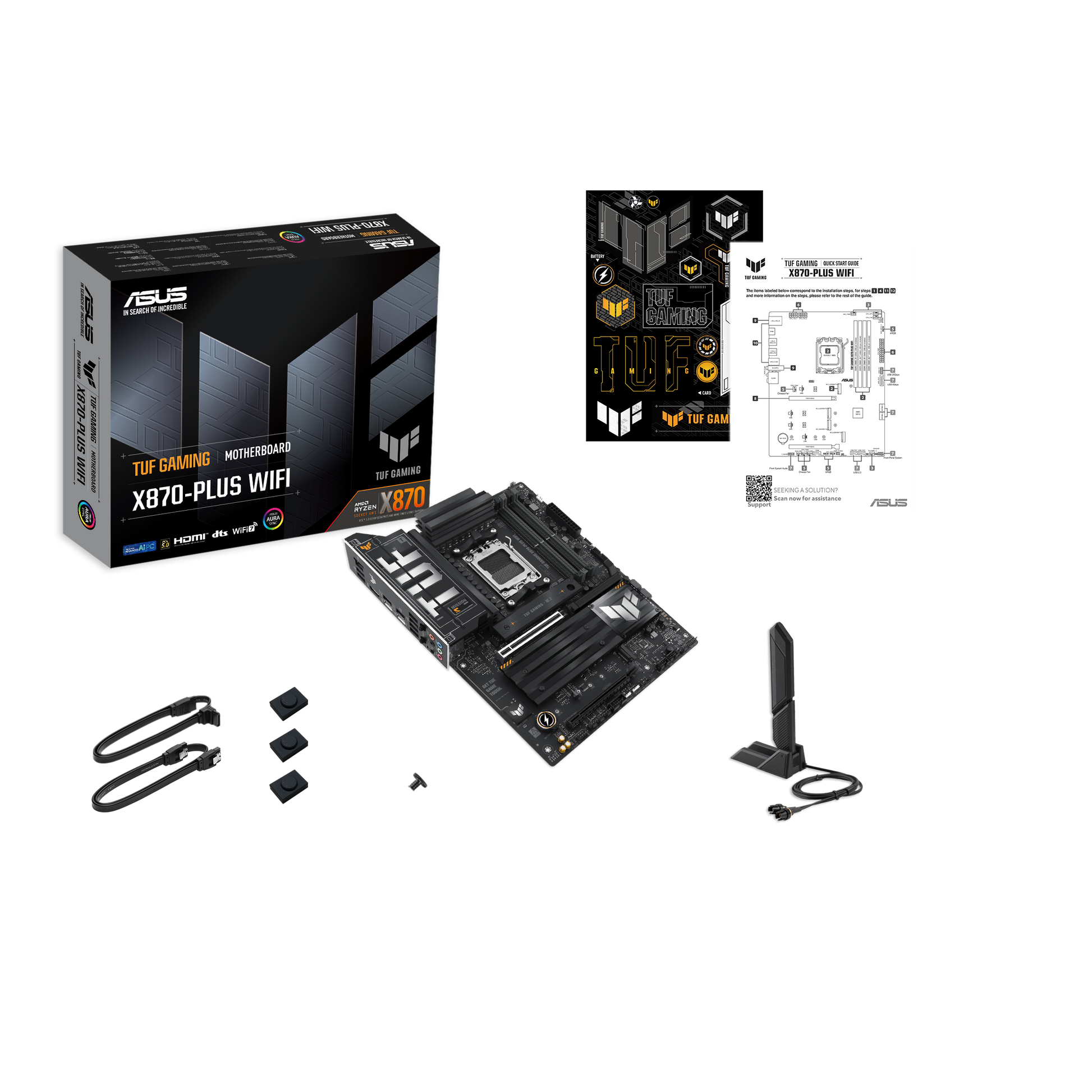

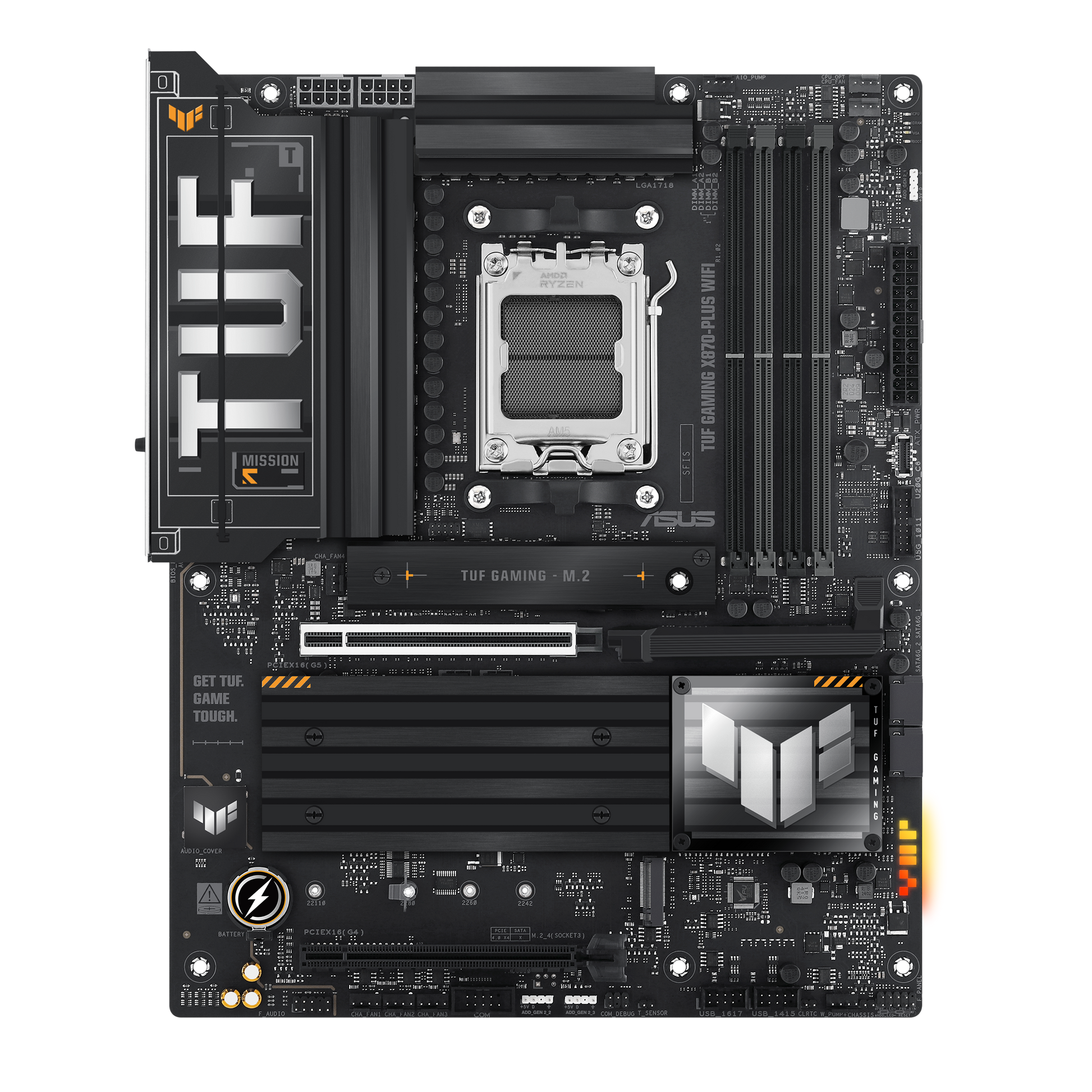

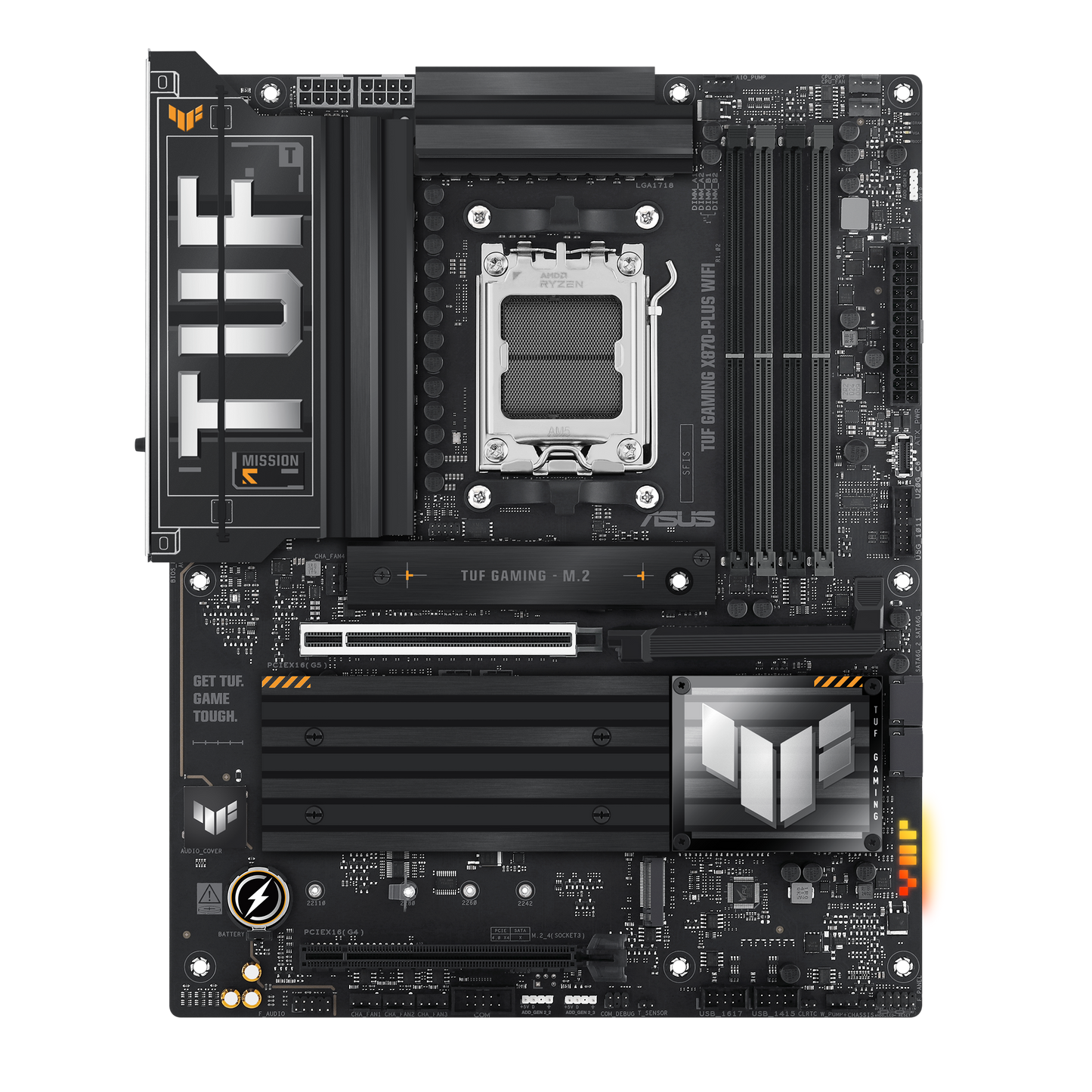

TUF GAMING X870-PLUS WIFI

CPU
AMD Socket AM5 for Ryzen 9000 / 8000 / 7000 Series

Chipset
AMD X870

Memory
4 x DIMM DDR5, up to 256GB
Supports up to 8000+MT/s (OC)
ECC & Non-ECC, Dual Channel
Supports AMD EXPO & ASUS AEMP

Graphics
1 x HDMI 2.1 (4K@60Hz)
2 x USB4 (40Gbps) Type-C (DP 1.4a, 4K@60Hz)

Expansion Slots
1 x PCIe 5.0 x16 (Ryzen 9000/7000)
1 x PCIe 4.0 x16 (X870 Chipset)
Note: PCIe bandwidth shared with M.2_2 and M.2_4

Storage
4 x M.2 (2 x PCIe 5.0, 2 x PCIe 4.0)
2 x SATA 6Gb/s
Supports RAID 0/1/5/10 (RAID 5 with Ryzen 9000 only)

Networking
Realtek 2.5Gb Ethernet
Wi-Fi 7 (2x2, up to 2.9Gbps, 2.4/5/6GHz)
Bluetooth 5.4

Rear USB
2 x USB4 Type-C (40Gbps)
3 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
1 x USB 2.0 Type-A

Front USB
1 x USB 20Gbps Type-C (30W PD)
1 x USB 5Gbps header (2 ports)
2 x USB 2.0 headers (4 ports)

Audio
Realtek ALC1220P 7.1 Surround HD
Supports 32-bit/192kHz stereo
120 dB SNR playback / 113 dB SNR input

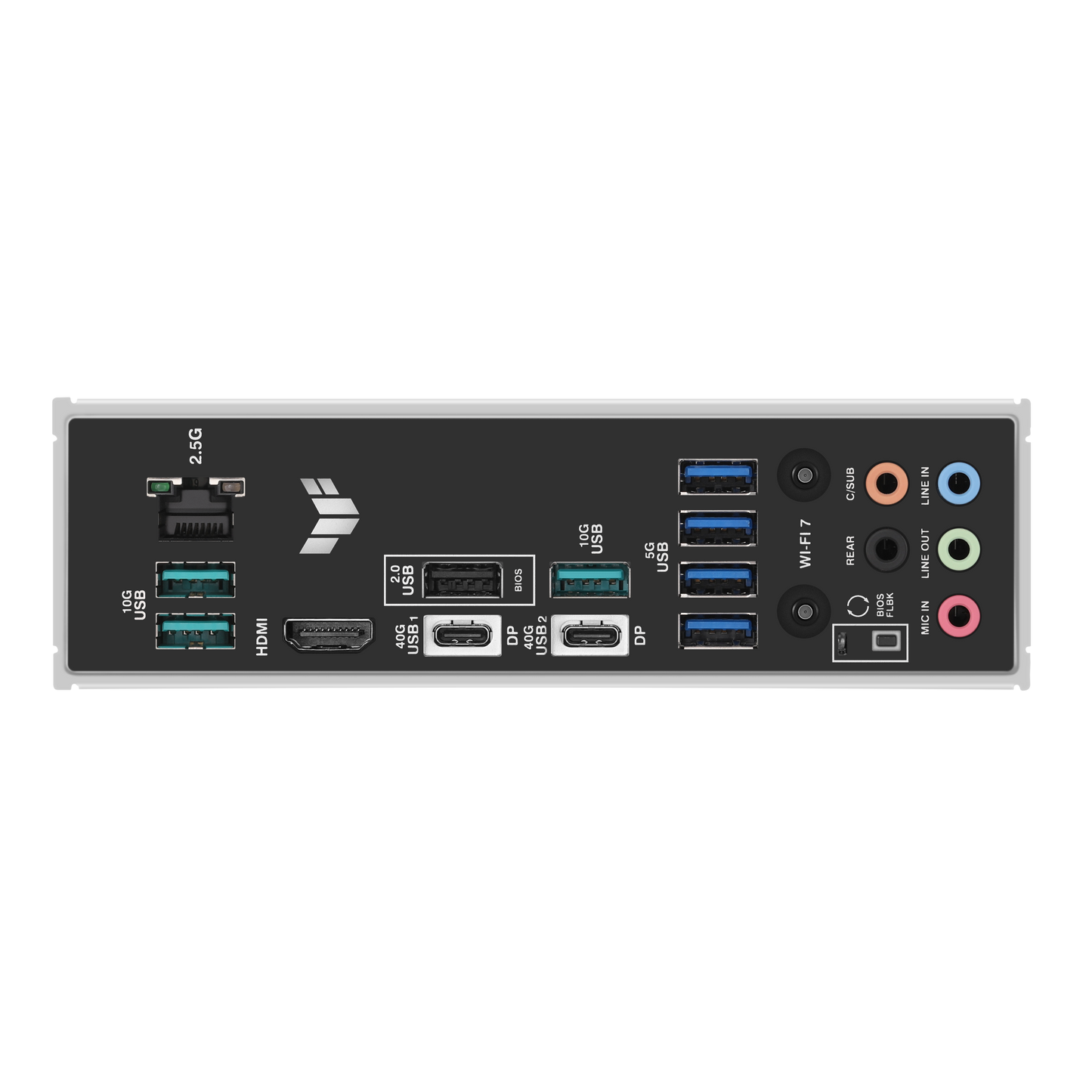

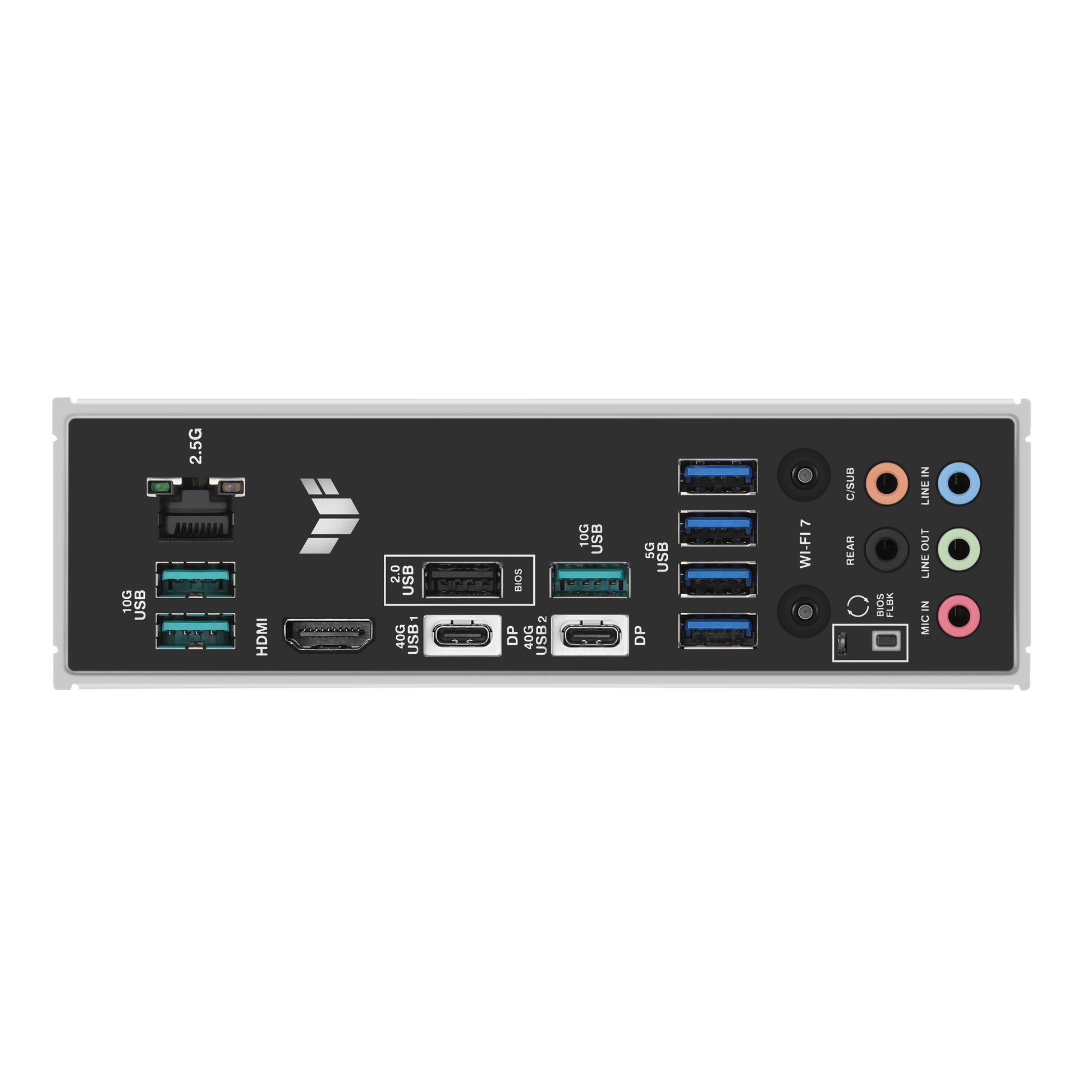

Back Panel I/O
2 x USB4 Type-C
3 x USB 10Gbps
4 x USB 5Gbps
1 x USB 2.0
1 x HDMI
5 x Audio jacks
1 x BIOS FlashBack button
1 x Wi-Fi module
1 x LAN port

Cooling Headers
1 x CPU Fan
1 x CPU OPT Fan
1 x AIO Pump
4 x Chassis Fan
1 x W_PUMP+

Internal I/O
4 x M.2 slots
2 x SATA ports
1 x USB 20Gbps Type-C
1 x USB 5Gbps header
2 x USB 2.0 headers
3 x ARGB Gen 2 headers
1 x Clear CMOS
1 x COM Port
1 x Front Audio
1 x Front Panel header
1 x Thermal Sensor

Special Features
TUF Protection (DIGI+ VRM, ESD Guards, LANGuard, SafeSlot)
ASUS Q-Design (M.2 Q-Latch, Q-LED, PCIe Q-Release, Q-DIMM, Q-Slot)
ASUS Thermal Solution (VRM & M.2 Heatsinks)
Aura Sync RGB
USB Wattage Watcher
BIOS FlashBack

Software
Armoury Crate, Fan Xpert 4
ASUS UEFI BIOS EZ Mode
TUF GAMING CPU-Z, DTS Audio
Norton 360 (60 days), WinRAR (40 days)

BIOS
256Mb Flash ROM, UEFI AMI BIOS

Form Factor
ATX (30.5 x 24.4 cm)

OS Support
Windows 11
