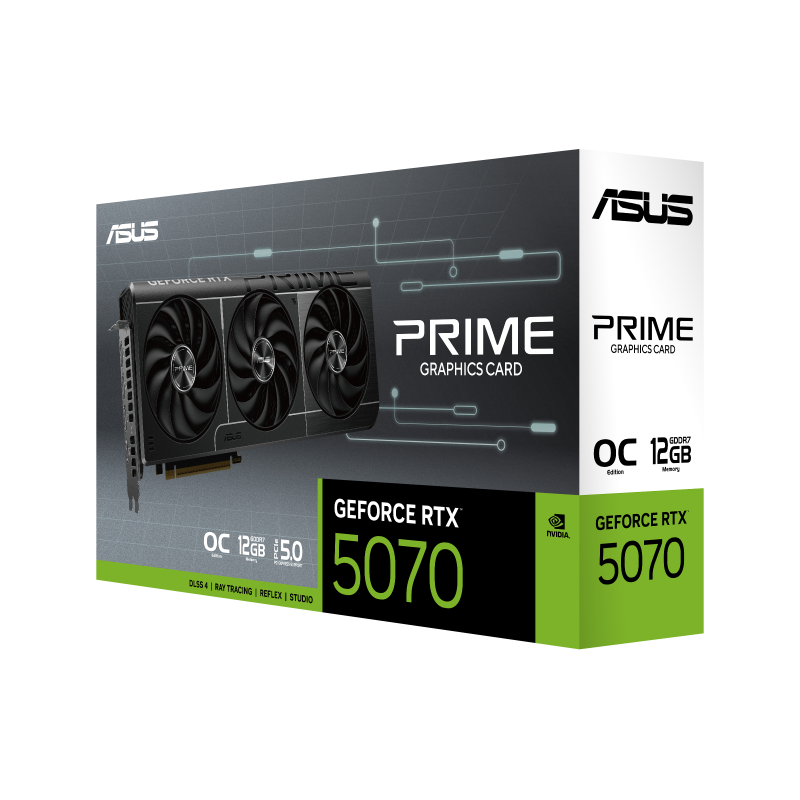

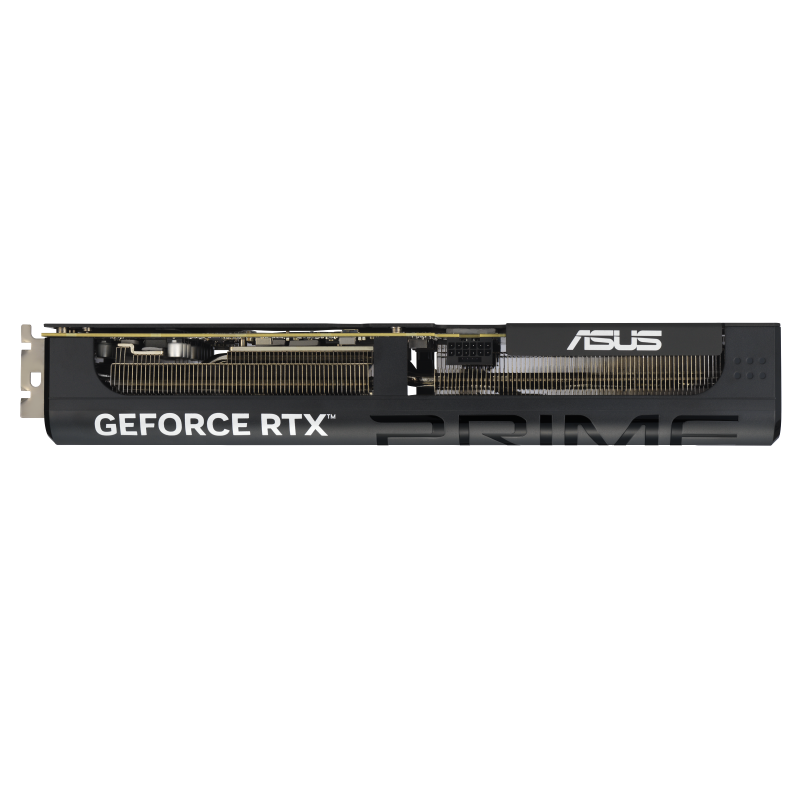

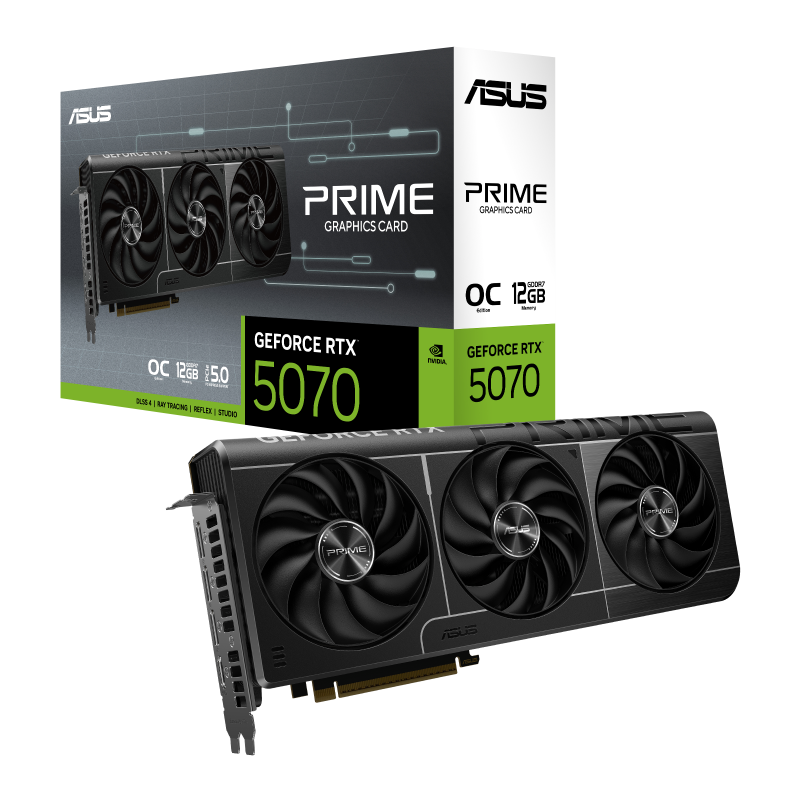

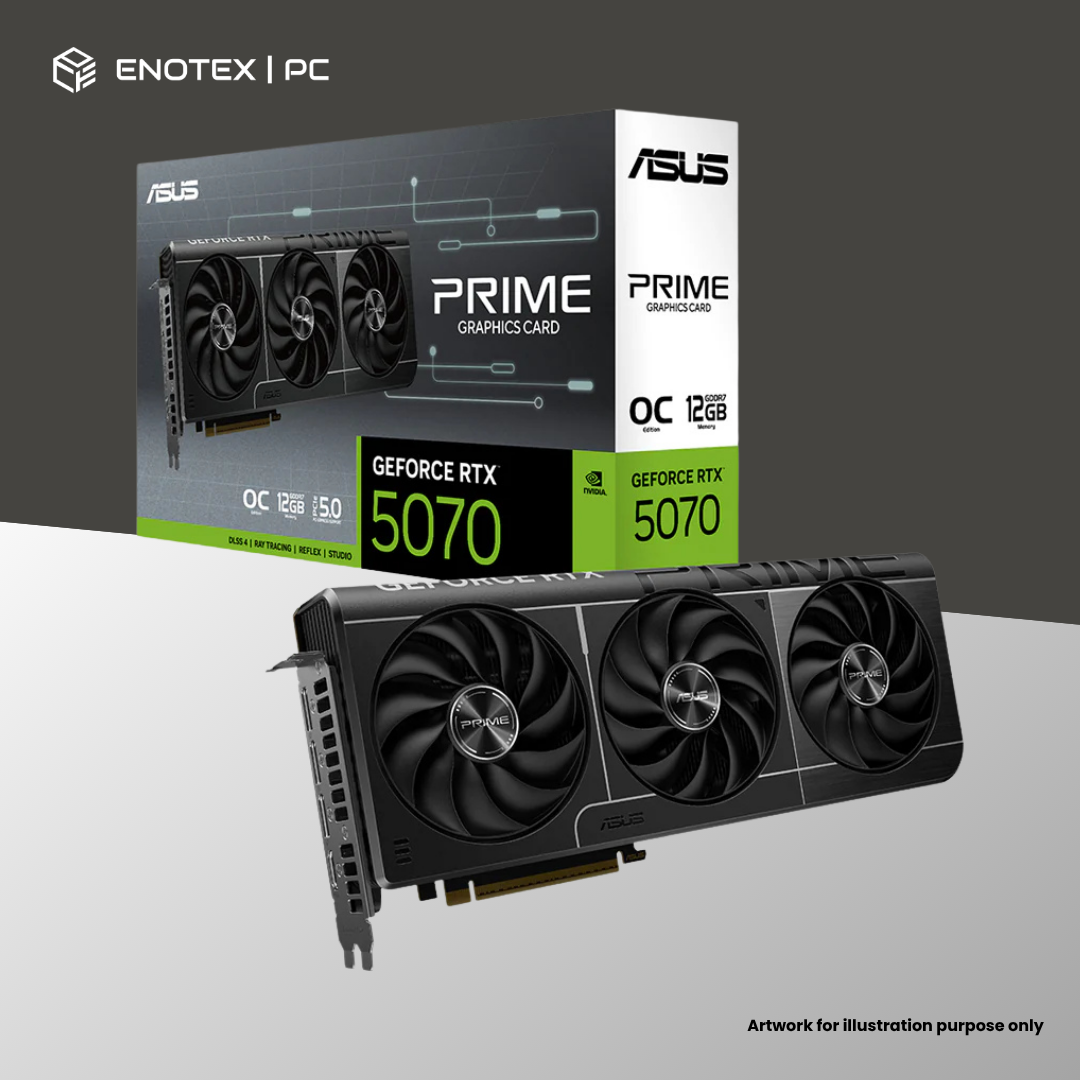

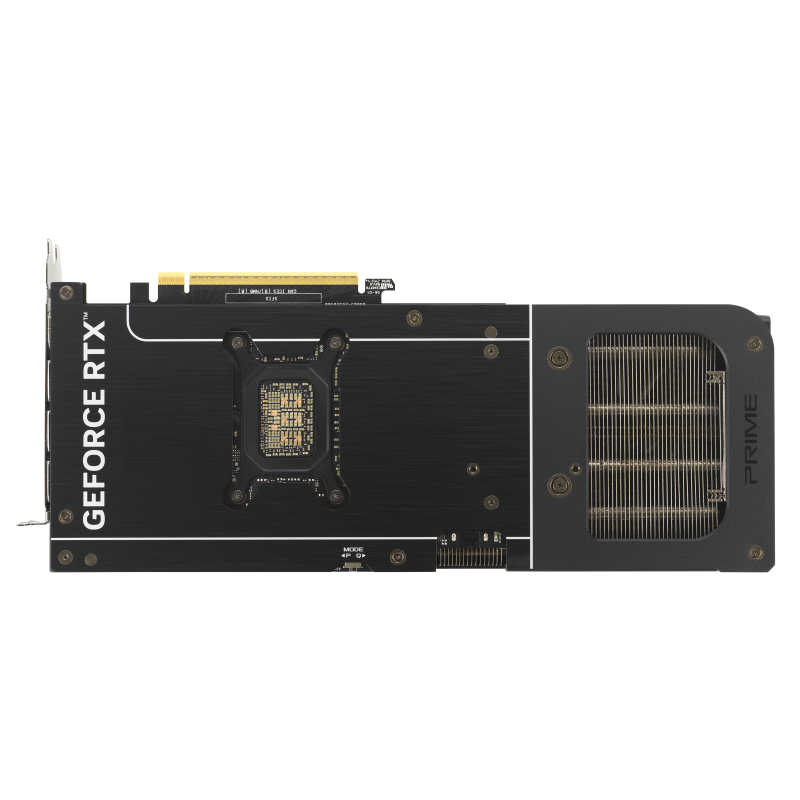

ASUS PRIME GEFORCE RTX 5070 OC EDITION 12GB GDDR7

OVERVIEW

• SFF-Ready 2.5 Slot Design

  Compatible with small-form-factor builds

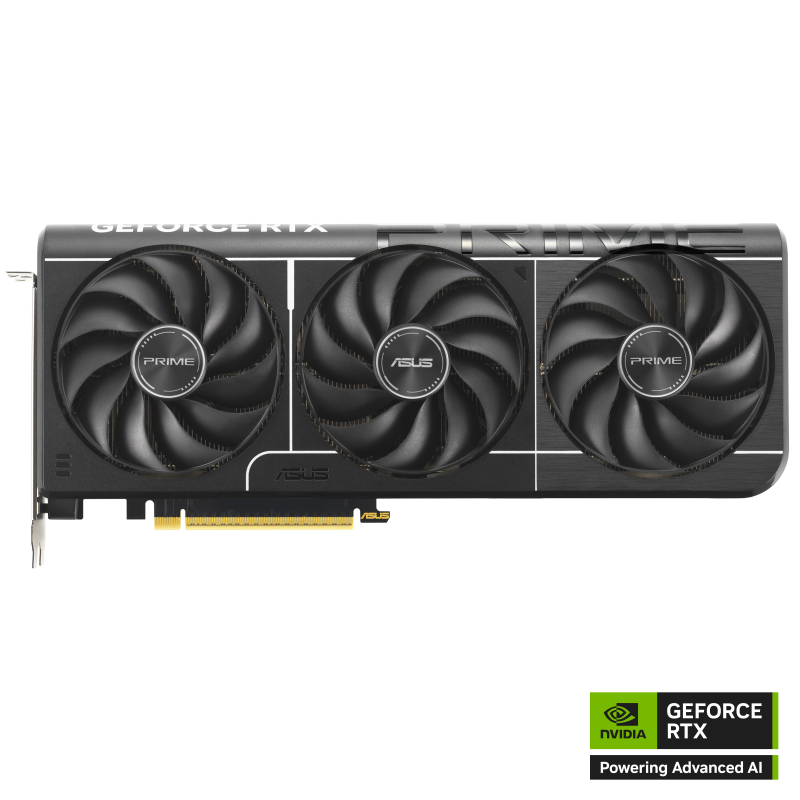

• Axial-Tech Fans

  Longer blades improve airflow and dispersion



• Phase-Change GPU Thermal Pad

  Optimal heat dissipation for GPU longevity


•

  Dual-Ball Fan Bearings

  Up to twice the lifespan of sleeve bearings

•

  Dual BIOS

  Toggle between Performance or Quiet modes

•

  GPU Tweak III

  Ultimate GPU tuning utility

• Perfect PSU Companion

  ASUS Prime Gold 850W/750W





  Graphics Processing: NVIDIA® GeForce RTX™ 5070
  Model: PRIME-RTX5070-O12G
  AI Performance: 1005 TOPs
  Bus Standard: PCI Express 5.0
  API Support: OpenGL® 4.6
  Memory: 12 GB GDDR7 with a memory speed of 28 Gbps on a 192-bit interface
  Engine Clock: 2587 MHz (OC mode), 2557 MHz (Boost Clock in default mode)
  CUDA® Cores: 6,144
  Maximum Resolution: 7680 × 4320

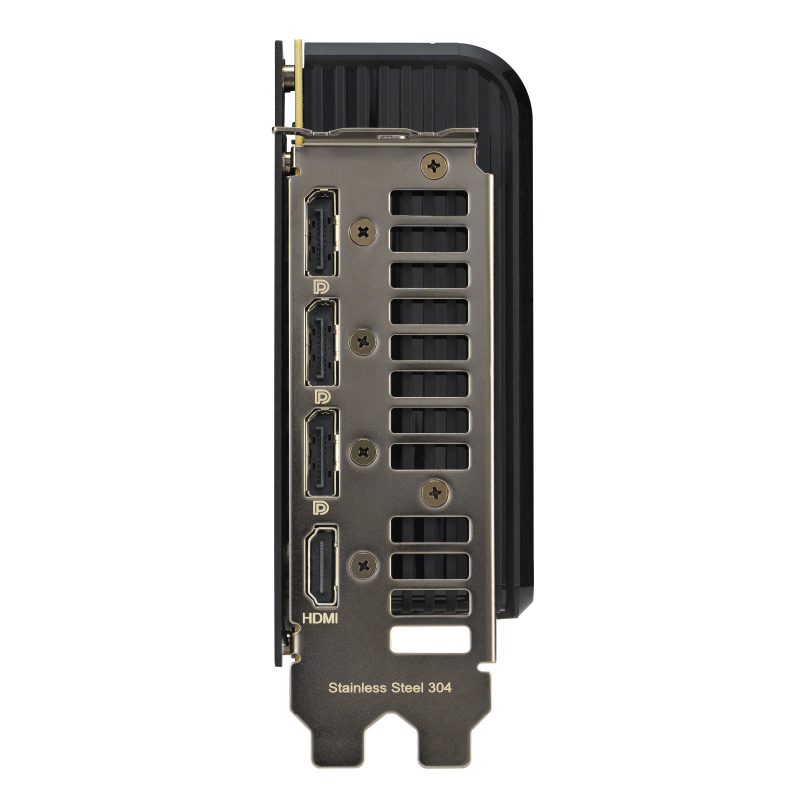

  Display Outputs: 1x HDMI 2.1b (native), 3x DisplayPort 2.1b (native), HDCP 2.3 supported
  Maximum Display Support: 4 monitors
  NVLink / Crossfire Support: Not supported
  Power Requirements: 1x 16-pin connector, recommended PSU is 750W
  Card Dimensions: 304 mm × 126 mm × 50 mm (12 x 5 x 2 inches), 2.5-slot design
  SFF Ready: Compatible
  Included Accessories: Speedsetup manual, ASUS Velcro hook & loop, thank you card, 1-to-2 adapter cable
  Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, and Studio Driver (downloadable from support site)

  Note: Wattage recommendations are based on a fully overclocked GPU and CPU system. For precise PSU selection, refer to the “Choose By Wattage” feature on the ASUS PSU product page: ASUS Power Supply Units. All specifications are subject to change without notice. Availability and features may vary by market. Users are responsible for ensuring they reference the most up-to-date specifications to avoid issues or claims based on outdated information.
